manual transmission swap, complete part list
« on: Dec 25, 2011, 06:59:11 pm »
just completed mine a few weeks back, thought id post everything you'd need in one place

5 speed w58 transmission out of a 82-85 celica (complete with 2xr bell housing, clutch fork, t/o bearing etc..)
shifter
top 2 manual trans bolts (automatic are too long)
clutch (if new, should come with new t/o bearing, pilot bearing and clutch alignment tool)
flywheel
flywheel/flexplate bolts (found that they are the same, still got arps though)
5 speed front half of the driveshaft
master cylinder
slave cylinder
clutch line (hard line/custom made line)  direct fit http://www.phase2motortrend.com/cispautomacl.html
auto/manual trans cross member (they are the same)
clutch pedal
clutch pedal support bracket or custom support bracket/bolts
manual car brake pedal
backing plate between motor and trans (auto backing plate works the same)
transmission supports that bolt to the motor from auto or manual trans, auto does work with the w58
cut out about an inch of the top of the shifter hole

i think thats it, if anything else post n ill add

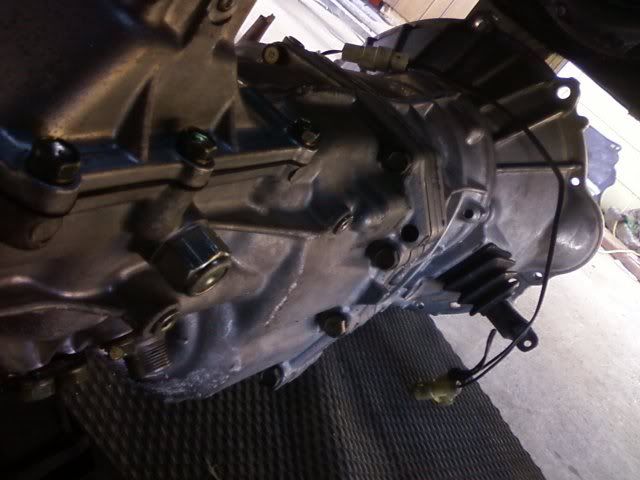

some of my pics

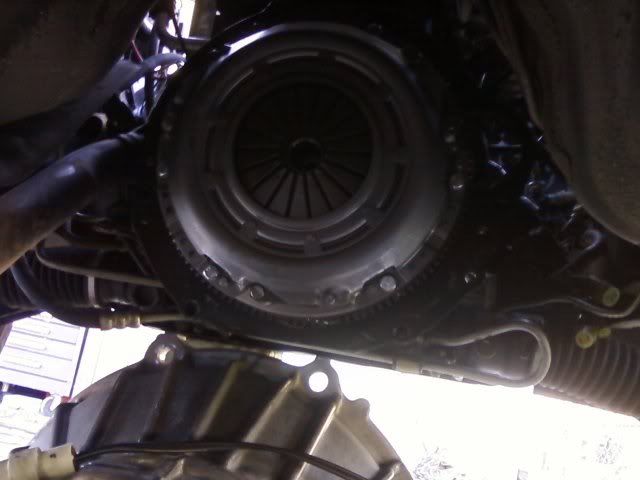

sachs clutch :thumbs:


hope this helps anyone!
"men see things as they are and ask, why? i dream things that never were and ask, why not?"
Jun's Rides:
1985 Toyota Celica GT Liftback -Black Lighter- (5 Speed conversion)
1985 Toyota Celica Supra P-Type -Ultimate Demon Runner-
1985 Toyota Celica GT-S Liftback -Hamburger Train- R.I.P 2001
1984 Toyota Celica GT-S Liftback -Silver Bullet- **SOLD** and will miss it
1991 Lexus ES250 - 2VZ-FE 2.5L V6, accidentally fixed the A/T lmao.

Offline TransAmBandit

  • Senior Member
  • ****
  • Posts: 437
    • View Profile
Re: manual transmission swap, complete part list
« Reply #1 on: Dec 25, 2011, 07:26:39 pm »
I drilled my firewall when I mounted my clutch pedal. How did you do yours?
1984 Celica Supra P-Type - 5MGE, 5 Speed Swap, 2nd owner
1985 Celica GTS Vert - Currently being restored and swapped to 5 Speed and LSD
1986 Cressida - 5MGE/5 Speed Swap/LSD
1987 4Runner Turbo - 22RTE/Auto BHG.

Offline Dr.Jun.Manabe

  • Senior Member
  • ****
  • Posts: 460
  • Chico - Oroville, CA
    • View Profile
Re: manual transmission swap, complete part list
« Reply #2 on: Dec 25, 2011, 07:29:48 pm »
the holes were already there on my 85 GT they had little rubber grommets you pop out for the master cylinder bolt holes.

edit: are you talking about the clutch pedal mount?
« Last Edit: Dec 25, 2011, 07:31:39 pm by Dr.Jun.Manabe »
"men see things as they are and ask, why? i dream things that never were and ask, why not?"
Jun's Rides:
1985 Toyota Celica GT Liftback -Black Lighter- (5 Speed conversion)
1985 Toyota Celica Supra P-Type -Ultimate Demon Runner-
1985 Toyota Celica GT-S Liftback -Hamburger Train- R.I.P 2001
1984 Toyota Celica GT-S Liftback -Silver Bullet- **SOLD** and will miss it
1991 Lexus ES250 - 2VZ-FE 2.5L V6, accidentally fixed the A/T lmao.

Offline yella81celica

  • Senior Master
  • ******
  • Posts: 5,411
  • Tigard, OR
    • View Profile
Re: manual transmission swap, complete part list
« Reply #3 on: Dec 25, 2011, 07:57:48 pm »
With mine (even though its an 81) I had to drill out the bracket, that the pedal bolts to, off the 76 and I still need bolt it on the 81 for extra support.
