Gts Control Arm Info
« on: Jul 05, 2007, 12:07:11 am »
While under my car recently, I discovered a crack in one of my rear control arms. This was the beginning of some unsettling discoveries regarding the strength of these parts as they age.

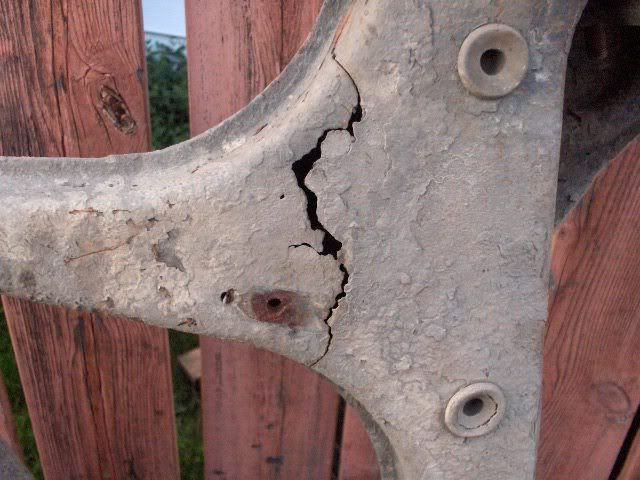

Here's the broken arm-


It was undercoated and looked OK when installed. I didn't know enough at the time to check for cancer, lesson learned. Rust and torque don't mix!

If water gets into them they can rust from the inside out, weakening them before you ever see a sign. I would recommend checking them with the screwdriver test: if you can punch a hole in it, it's shot. The main trouble spot is near the clamp for the E-brake cable. If they pass the test, pull the rubber plugs and squirt a rust neutralizing agent into all the holes. It'll settle in the same place as water would and treat the area. Once that's dry, follow up with a good dousing of Rust-Check or similar oily rust preventer on the inside, then replace the plugs.

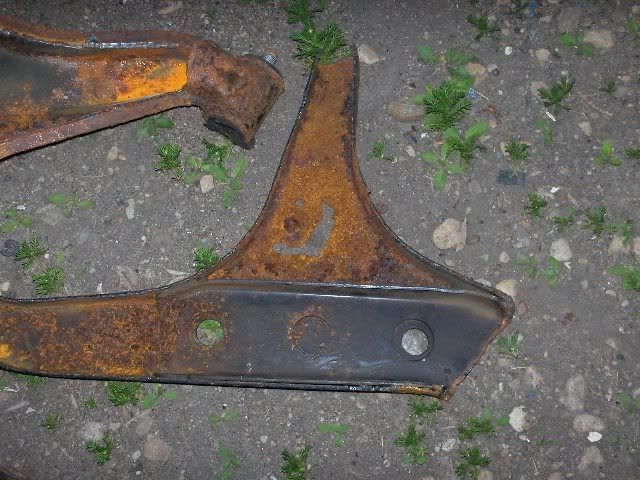

Just for interest, here's the inside of an arm I cut open-


The reinforcement runs from the hub to the inside arm. The outer arm is just the thickness of the stamping, hence it's vulnerability to rust.

I now have a good pair under the car, along with new bushings. It's all good now, tighter than it's felt in quite a while.
