Quickie New Head Gasket
« on: Jan 25, 2009, 09:12:15 pm »
notes:

if you have oil and water contamination you will need to disasemble the block as well, then it is no longer a "quickie head gasket".  that write up is coming as soon as it happens to me.
this is for a stripped down carb'd (no emissions) 22r.  efi will be much more involved as will a OEM carb setup.
prolly take 6hrs your first time if youre familiar with what your doing
DO NOT DO THIS ON A WARM ENGINE!
rSvoa



supply's needed:

head/intake/exhaust gaskets (assuming valve cover gasket is still good)
oil change stuff + at least 2 extra quarts
clean rags or paper towels
RTV
6-pack of cheap beer


tools needed:

metric socket and wrench set from 10-19
torque wrench
mid size flat head screw driver
feeler gauge set
metal gasket scraper
plastic gasket scraper
high speed wire wheel type thing
carb clean (yes its a tool)
factory spare lug wrench from a 79-83 toyota or a very big flat head screw driver




here it is as i start







now you remove the head bolts following this procedure



1st step:

find TDC.

remove the distributor cap and valve cover. crank the motor over by hand clockwise until the timing mark on the main pulley is here.


verify that you are at TDC by checking that the dizzy rotor is @ #1


and the dowel pin on the cam is @ 12:00



now if you havent done it yet make sure this list is complete:

disconnect:
all ground wires from head
all radiator hoses to intake and fluid drained
exhaust
fuel line
random wires  (temp/sensors/ect)
throttle cable
remove PS pump from head
vac lines  (note: i only have 1 line for the brake booster/valve cover)

now start to remove the head itself

1st remove the dizzy gear to be able to get the cam timing chain gear off. use a lil carb clean on a rag and clean a bit of the chain and gear, then mark it with a sharpie to help later. when you take it off hold the pass side tight and roll it down till it binds in the guides.


dont forget about the 12mm bolt that connects the head to the timing cover, there should be a washer on that bolt. it might be under the puddle of oil


with the head bolts, follow this order in 3 stages.  crack loose(1/16th turn), loosen a bit more(1/4 turn), completely remove bolts. or you will warp the head.
« Last Edit: Feb 07, 2012, 04:44:16 am by shonuff »

Offline shonuff

  • Senior Master
  • ******
  • Posts: 5,014
    • View Profile
    • Black Sheep Auto
Quickie New Head Gasket
« Reply #1 on: Jan 25, 2009, 11:47:12 pm »
now that you have all the head bolts loose you can remove them,


use a card board box to hold them.  make holes so you can keep them in order and easily tell which ones go where.


now tug on the head, if it doesnt come off DONT:
hit with hammer
randomly pry with a screw driver
kick it
ect.

use your handy dandy tire iron and place it here and give a gentil twist. it will pop right off.



my BHG was on the #1 n #2 water jacket on the exhaust side




gasket is upside down so #1 is on the far right, exhaust side on bottom of pic


you can really see it in this pic, looks like #3 n 4 were gonna go soon.


now take a wide metal scraper and go to work on the block. make sure to get every lil bit of gasket off the surface. the blue stripes are just staining from the previous gasket.  i found even older gasket material under the newer gasket which prolly led to the blow out.  let this be a lesson, get every last bit off.


surface is clean of gasket. use a shop vac or compressed air to get any bits that fell into the cylinders out.


heres the head perspective
« Last Edit: Jan 30, 2009, 06:08:53 am by shonuff »

Offline shonuff

  • Senior Master
  • ******
  • Posts: 5,014
    • View Profile
    • Black Sheep Auto
Quickie New Head Gasket
« Reply #2 on: Jan 25, 2009, 11:58:09 pm »
yep, theres the problem


now to clean the head, use a plastic scraper or a very soft brass wire wheel on a super high speed drill and use very lil pressure.  you dont want to remove aluminum off the head. that will create further problems.


well ive run into a problem...

there was some pitting on the head where the gasket blew.  and the machine shop isnt open on sunday.

here is the pitting that im worried about


some pitting in other various area's as well.




the machine shop had to take 9 passes or .009 off the head to get it to clean up. turns out it was worse in parts i hadnt cleaned yet.

they also said that it was a good thing i did, or i would of blown the next gasket at mostly the same spot.

here it is ready for me after 3hrs at the machine shop


in case you cant see it heres a close up


so clean :lick:


while this is happening, its a good time to clean the threads on every thing you took off.  may seem like a waste of time, but it prevents cross threading and allows you to properly torque bolts, plus you will be amazed at being able to finger tighten stuff.

im gonna assume this stuff is done:
all bolt n hole threads are clean
all gasket surfaces clean
new gaskets in hand

final bit of prep is to loosen all the rocker valve adjustment nuts and move the striker up till its flush with the rocker arm.  left is done right isnt.  this is to prevent bending while you torque the head down. a valve adjustment is needed anyway.


lay the head gasket down on the block using the dowel pins to line it up. now carefully set the head on. put the back on first and guide the front over the timing chain.

if you had your head hot tanked
you need to remove the bearing caps and apply a bit of grease to all the contact surfaces. including the contact patch on the valves and rockers, my machine shop says its ok to use bearing grease.



get your handy dandy tire iron again, you'll use it this time to compress the chain tensioner under the timing cover. with your hand around it (1in off head) move to the drivers side to compress it. you will feel it move, be extra careful not to push the single chains past the guide. dual chains would be a lot harder to push past the guide.


« Last Edit: Feb 11, 2009, 04:20:34 am by shonuff »

Offline shonuff

  • Senior Master
  • ******
  • Posts: 5,014
    • View Profile
    • Black Sheep Auto
Quickie New Head Gasket
« Reply #3 on: Jan 25, 2009, 11:59:48 pm »
now put all the head bolts in there respective holes. once they are all in finger tighten in the order below. then lightly hand tight with a wrench till they seat (5lbs). then torque to 25-30, then to 60lbs.  always repeating the same order.




now you actually have a engine in there congradulations.

lets put all the crap back on.


first its the dizzy gear and dizzy.  align the rotor to roughly 12:00 then slide it in. as it slides in, it will rotate counter clockwise and end up at #1 on the cap. some dizzy's have a paint mark. if it doesnt line up then pull it back out and rotate 1 tooth the direction thats needed. then gently put the dizzy gear in and torque it down.


after that its really not rocket science so heres a list:

intake
exhaust
plug wires n cap
other wires as needed
throttle linkage
hoses
hold off on the valve cover for a sec, good idea to lay it on there for install of the other crap, ta help keep things clean.


last but not least its time for a valve adjusment.  this is kinda a pita but absolutely necessary.

factory specs, search the forum if you want to read people argue about different  gaps, im not qualified enuff yet to tell you a different way.
intake: .008
exhaust:.012


use this order

1st


2nd turn the crank 360 and do this order



now take those extra 2 quarts of oil and drill a super tiny hole in one cap.  put the cap back on and squeeze the bottle for high pressure oil. use this to spray out the oil passages of any gasket that may have fallen in.  go ahead and use 2 quarts to be really sure its clean.

now drain the oil, and do a oil change. pour the oil over the whole valve train slowly without the valve cover on.  keep in mind that the head will hold almost a quart in the valleys so only put in 3.5 quarts.  then start wait for pressure, check and fill if needed

install the valve cover and fill the radiator.

start the eng

burp the radiator and check for leaks. allow to warm up then shut off.  check/adjust the valves again.  allow the motor to cool for at least 2hrs+. then recheck the head bolt torque.

now go buy another 6-pack of good beer to celebrate


editors note:

i have never done this before. i have spent countless hours reasearching and reading and asking questions before i did this. so i might be a bit more prepared then some. i only used a manual during the procedure for the head bolt order  torque specs, and valve adjustment.  i used this manual and most any manual with a 2xr will work.


this write up was done in the dark next to train tracks with occasional snow flury's


brought to you by mickeys and black sheep auto
« Last Edit: Feb 11, 2009, 05:16:19 am by shonuff »

Offline ubertuner

  • Full Member
  • ***
  • Posts: 340
    • View Profile
Quickie New Head Gasket
« Reply #4 on: Jan 27, 2009, 12:11:17 pm »
Hmm.  That sure would have been handy a week ago.  I just stumbled through the same damn thing.  EFI no different, just more shat to label.  My heads on the bench now with a #1 exhaust valve missing a chunk.  Haven't got a spare valve kicking around there, do ya Nuff?
,,
RA64 before..............................Sam e car now.....................Magic Rabbit

Offline shonuff

  • Senior Master
  • ******
  • Posts: 5,014
    • View Profile
    • Black Sheep Auto
Quickie New Head Gasket
« Reply #5 on: Jan 27, 2009, 06:27:55 pm »
nope every one i got has a hole its supposed to be in.



but just about any 22r, 22re valve will work.  and with a lil creativity a chev 350 valve would work too...






ninja edit :ph34r:



only half way through my first cup o coffee.
« Last Edit: Jan 27, 2009, 06:37:38 pm by shonuff »

Offline Teranfirbt

  • Global Moderator
  • Grand Master
  • *******
  • Posts: 24,410
    • View Profile
Quickie New Head Gasket
« Reply #6 on: Jan 27, 2009, 06:33:34 pm »
20R valves are considerably smaller than 22R valves o_O
1983 Celica GT-S 2RZ swap: Deered 2014 :(
1986 Tercel 4WD 4AFE Swap: Going strong
1986 MR2: What a beast!
2014 Elantra GT: The reliable one

"Only two things are infinite, the universe and human stupidity, and I'm not sure about the former." ~ Albert Einstein

Offline OldMage

  • Guru of Useless Tidbits
  • Senior Master
  • ******
  • Posts: 8,347
    • View Profile
    • http://celica-gts.com/users/oldmage
Quickie New Head Gasket
« Reply #7 on: Jan 27, 2009, 08:06:51 pm »
Hell, wish I had some of my old parts...  Small chance I do, but they'd be buried out in my shed, and it's snowing again here.


'83 Celica GT-S coupe - EFI hybrid
'03 Prius - DD/corner-carver

My Home Page My Photobucket

Offline ubertuner

  • Full Member
  • ***
  • Posts: 340
    • View Profile
Quickie New Head Gasket
« Reply #8 on: Jan 29, 2009, 12:45:31 am »
Nevermind guys.  i found one local for $16 bucks brand new.  that'll get me going again fur sure.  Going to order it today.

By the way Nuff, that shiny head looks sweet...
,,
RA64 before..............................Sam e car now.....................Magic Rabbit

Offline shonuff

  • Senior Master
  • ******
  • Posts: 5,014
    • View Profile
    • Black Sheep Auto
Quickie New Head Gasket
« Reply #9 on: Feb 01, 2009, 07:28:31 am »
bumped for her pleasure.




i think im done minus a couple pics ill get around to someday.



anybody see anything i missed?


did anything wrong?


forgot something?


suggestions?



thx :thumbs:

Offline a2ndopinion

  • Grand Master
  • *******
  • Posts: 22,340
  • PDX, OR Master Debater and Cunning Linguist
    • View Profile
    • http://a2ndopinionvehicleinspections.com
Quickie New Head Gasket
« Reply #10 on: Feb 01, 2009, 03:20:59 pm »
Looks good to me! :thumbs:
There is a little I do different, but to each, their own.

I always drain the oil when I start, with the engine hot, but I have plenty of air compressor so can blow debris away. I pour a qt of ATF in before finishing to wash anything else out, and then about 1/2 qt of oil.

When cleaning threads, take an old head bolt (you almost always have to replace two due to pitting anyway - see pics below), and cut a "V" up the threads with a hacksaw (see pics below). Use that bolt to chase all of the head bolt holes, and do it numerous times until the holes are very clean! Do not use a regular tap, as it will remove metal! Thoroughly clean all head bolts, especially under the head where it contacts the rocker towers. Note: Our head bolts are not torque to yield, and do not need to be replaced every time, but do need to be examined closely for pitting and replace as necessary (unlike the 3VZE engine I'm working on now).
I always use an anti/never seize compound on the threads and under the bolt head. For those of you nay-sayers who claim that it alters the torque results, many of us "overtorque" the head bolts anyway, some going as high as 100 ft.lbs. (Teranfirbt :whistling:)

Edit (02/18/09): For the very first time, I re-torqued a head last weekend. Blind Studios and I were quite surprised that going through one at a time, in torquing sequence, I loosened each one about 1/6 of a turn just to ensure that it would move, and then turned each on almost 1/4 turn to re-torque them to the rebuilders recommended 65 ft.lbs.

For those of you who do not back off the adjusters, as you are torquing the head down, you are fighting valve spring pressure. This diminishes the actual torque (compression) that is being applied to the head gasket.
The other issue, as shonuff mentioned to me, is catching one and damaging it, the valve, and/or rocker arm.

If you have plastic chain guides (Heaven forbid!), be very careful when trying to compress the chain tensioner with a pry bar, as you may accidentally crack a guide. It is possible to compress just by prying up on the cam sprocket (carefully - some are cast and will shatter).


Oh! And I have done this on a warm (read HOT) engine with no negative effects. Just be very careful to back the head bolts off in reverse torque order, and do so in very slight increments!

I have also done this with heavily coolant contaminated oil, and just done an oil change again immediately after running the engine up to operating temp after completing the repair, and after running a qt of ATF through with the oil.
I will add this warning though:
Coolant can damage the babbit on the bearings, although does not seem to affect factory Toyota bearings (it will destroy Ford bearings). If so, it will result in a spun bearing, so beware - if bearings have been replaced with aftermarket bearings, all bets are off!

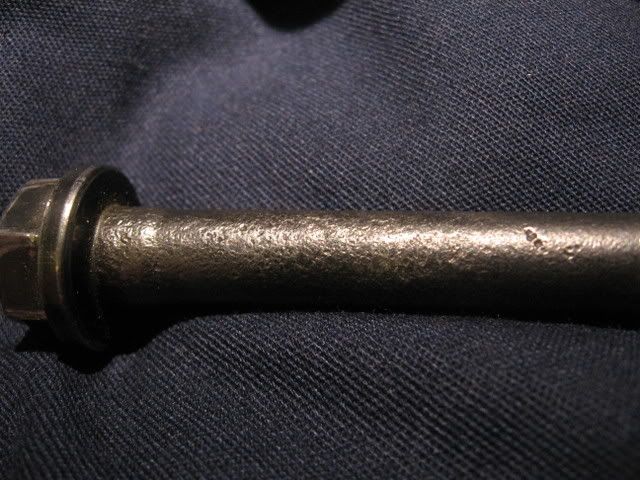

Heavily pitted bolt shank

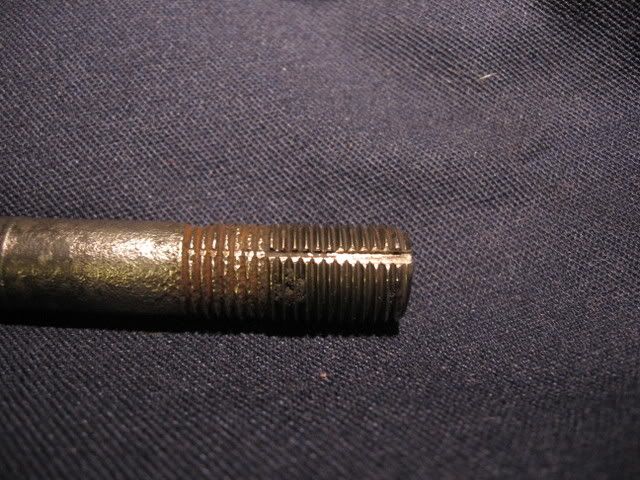

Heavily pitted bolt threads

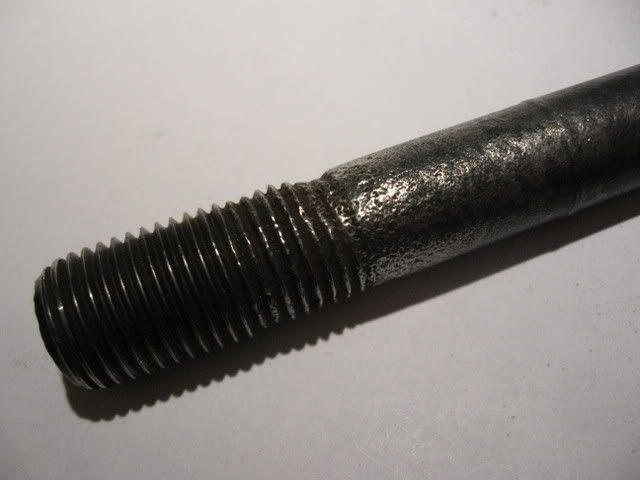

Groove cut at an angle for thread cleaning

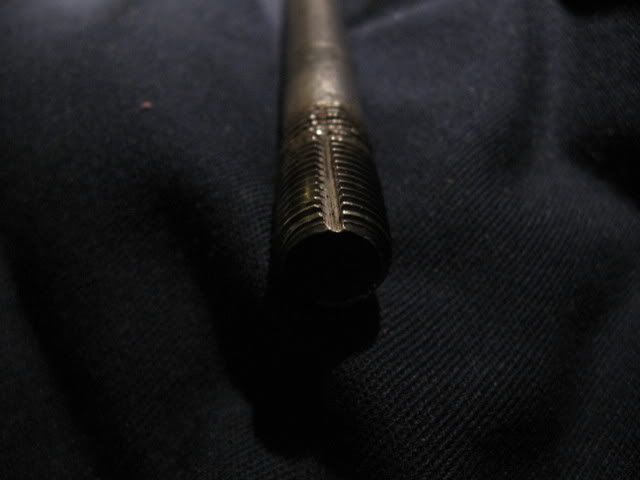

Another view of the groove cut at an angle for thread cleaning


It works very well, and comes free of charge (after you buy new bolts of course)! :thumbs:
« Last Edit: Feb 18, 2009, 02:42:46 pm by a2ndopinion »
ASE certified: Master Auto, Truck, Machinist & Collision Repair/Refinish Tech/Damage Estimator, Undercar & Parts Specialist, Service Advisor; Oregon Certified Vehicle Appraiser
DD - '81 Corona wagon - Weber, Cannon, MSD, Thorley, Magnaflow cat, 2.25" mandrel bent, Dynomax Bullet, Borla Pro XS, RA6x front suspension, Cressi Big Brakes, Mk II Addco, T3 RCAs & camber plates, coilovers, SW20/Camaro AGXs front/rear, all urethane bushings, Hilux overlloads...

Offline 85GTS

  • Bronze Member
  • Grand Master
  • *
  • Posts: 13,747
  • Wannabe Toyota collector- Oregon City, OR
    • View Profile
Quickie New Head Gasket
« Reply #11 on: Feb 01, 2009, 04:10:22 pm »
I can add my witness to the toughness of the factory bearings. I had a bhg between 3 and 4 and had to drive the car ~5 miles home, and the a couple more miles to get it to a garage. I later rebuilt the engine and the bearings looked just fine :thumbs:

I did change the oil before start up, changed it again after running a few minutes, and then changed it again ~2 weeks later...
« Last Edit: Feb 01, 2009, 04:10:41 pm by 85GTS »
85 Celica GT-S LB "Blue"

78 Celica ST coupe "Sleepra"

00 Lexus GS 400

91 Lexus ES 250

88 Celica All-Trac

04 Sequoia (wifes)

17 Chevy Bolt EV (daily)

The Second Amendment will always be under attack because it is the only veto held by the people.

Offline shonuff

  • Senior Master
  • ******
  • Posts: 5,014
    • View Profile
    • Black Sheep Auto
Quickie New Head Gasket
« Reply #12 on: Feb 17, 2009, 07:41:51 am »
bump for version 1.0



sticky worthy :cross:

Offline sirdan

  • Senior Master
  • ******
  • Posts: 6,866
    • View Profile
Quickie New Head Gasket
« Reply #13 on: Feb 17, 2009, 03:52:43 pm »
this is a great writeup any tips for doing this with efi?
« Last Edit: Feb 17, 2009, 03:54:04 pm by sirdan »
1988 4runner

Offline a2ndopinion

  • Grand Master
  • *******
  • Posts: 22,340
  • PDX, OR Master Debater and Cunning Linguist
    • View Profile
    • http://a2ndopinionvehicleinspections.com
Quickie New Head Gasket
« Reply #14 on: Feb 17, 2009, 04:44:14 pm »
Since I have done a few, here's my suggestions for a head gasket on an RE:

If all you are doing is replacing the gasket and do not need to pull the head any further, do not remove the intake! That is a lot more unnecessary work! Do not unbolt the exhaust manifold from the down pipe, only from the head.
If you do have to remove the manifold, don't forget the cap screw that uses a 6mm allen wrench and goes through under the t-stat housing - it can be PITA! Do not remove the fuel rail or otherwise upset the injectors if you do not need to.
Also, if you haven't done so yet, this is a good time to move the fuel filter.
« Last Edit: Feb 17, 2009, 04:46:46 pm by a2ndopinion »
