Cressida Big Brake Upgrade
« on: Mar 29, 2011, 08:09:57 pm »

This upgrade is a direct bolt-on using the calipers, mounting brackets and rotors off of '87-'88 Cressidas to net bigger in diameter (+ 9/16" / .5625" / 14.28mm) and width (.078" / 2mm) rotors (which is mass and a factor in braking ability) for 3rd gen Celicas/Mk II Supras, and in my case, an '81 Corona that had been upgraded to a mix 'n match of 3rd gen Celica/Mk II Supra front end pieces (among others). There are Brembo blank replacement rotors and performance pads such as KVR available too.

Before digging into this and for a little more insight into the 3rd gen/Mk II brakes, see the write up "Front Brake Job". It goes into more detail of the brakes themselves, and I couldn't see duplicating relevant existing info.

One of our local yards had just what I needed:

Make   Model   Year   Row   Date On Yard
Toyota   Cressida   87   0039   03/15/2011

It had only been there for five days when I got there, so was unmolested.

I must also thank Zoomy for coming along and taking pics, offering her $.02, handing me tools, and holding the umbrella! I did pay her way in and bought her dinner though.

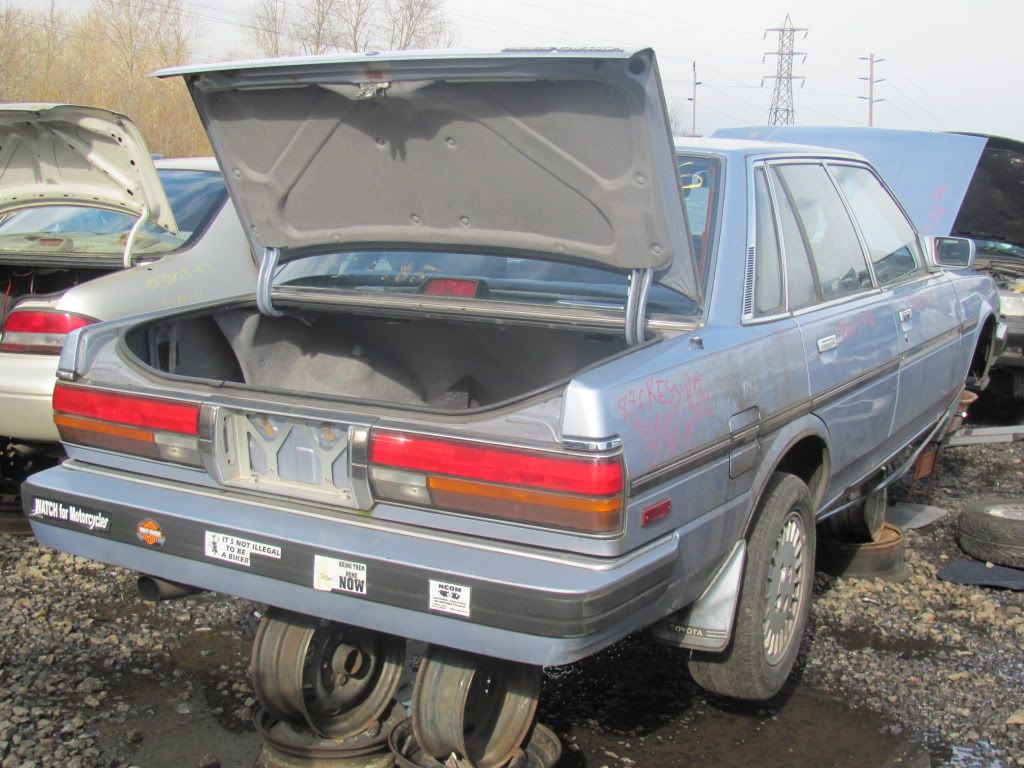

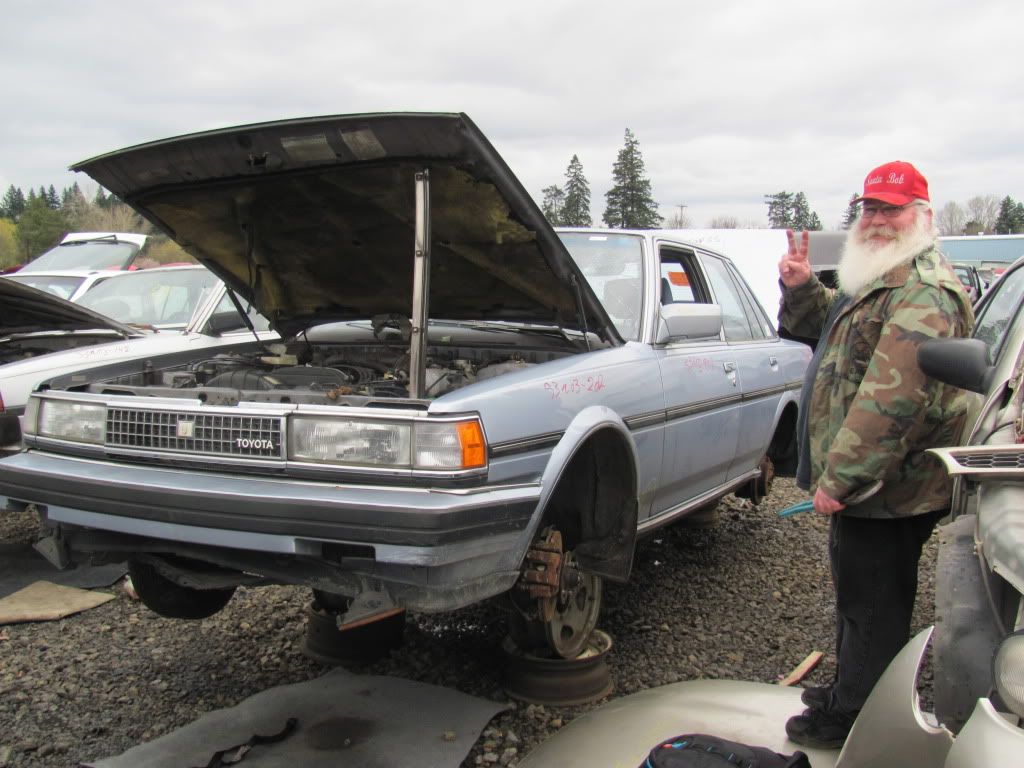

Here's the donor (the car, not me):

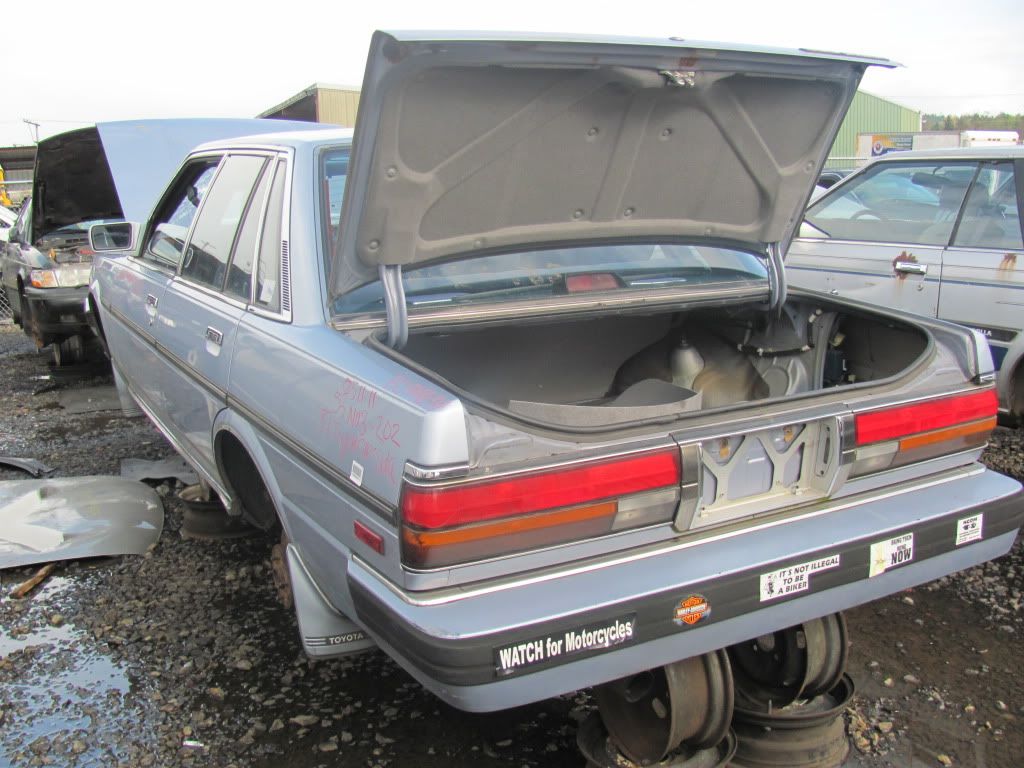

Looks good so far


Ehh, a little rough:

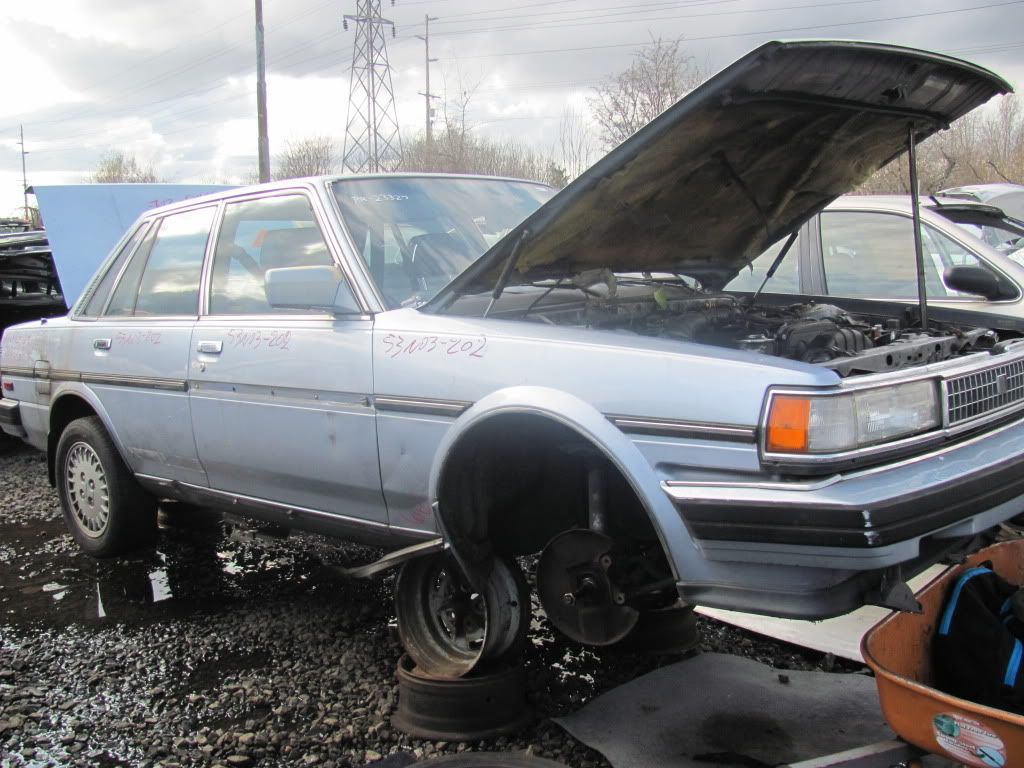

Well, molding and a couple dings - why would someone let it end up here?

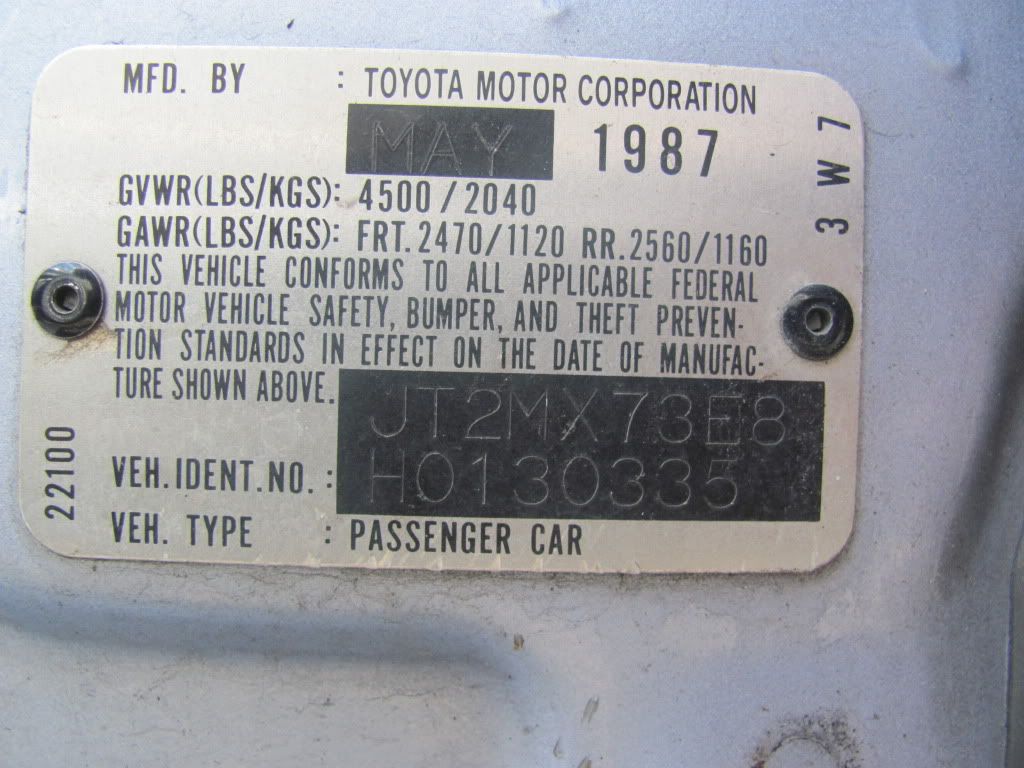

Yup that’s the right year range! I wish the ID tag on the firewall had been more accessible.

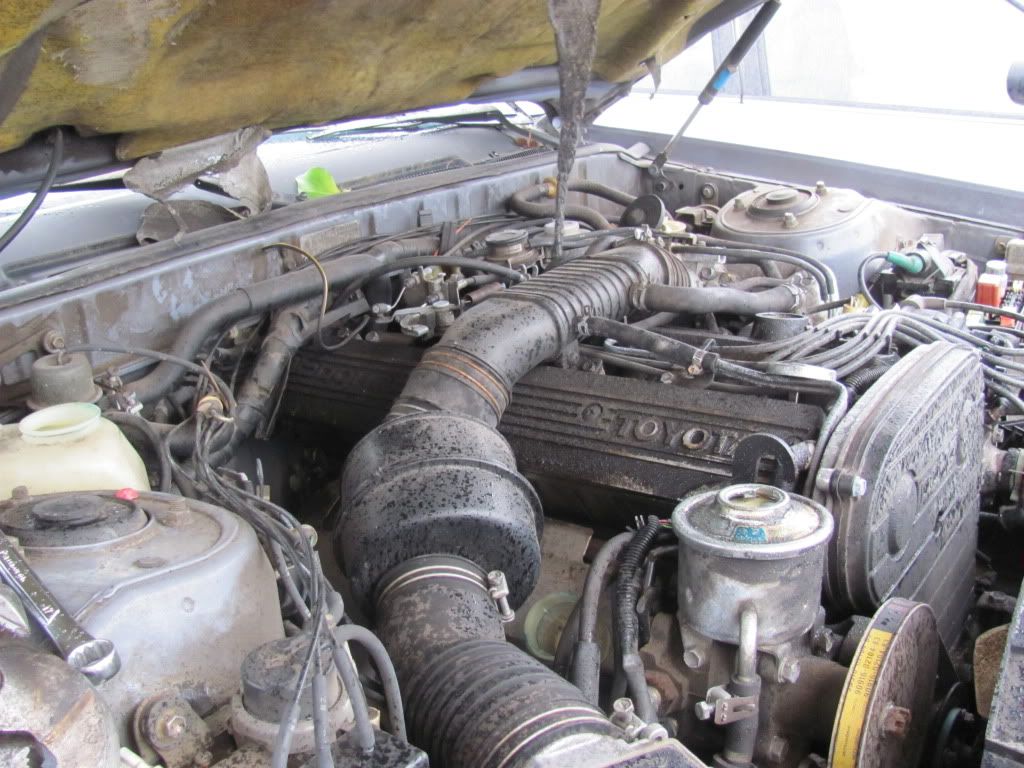

Looks like a perfectly good 5M-GE to me

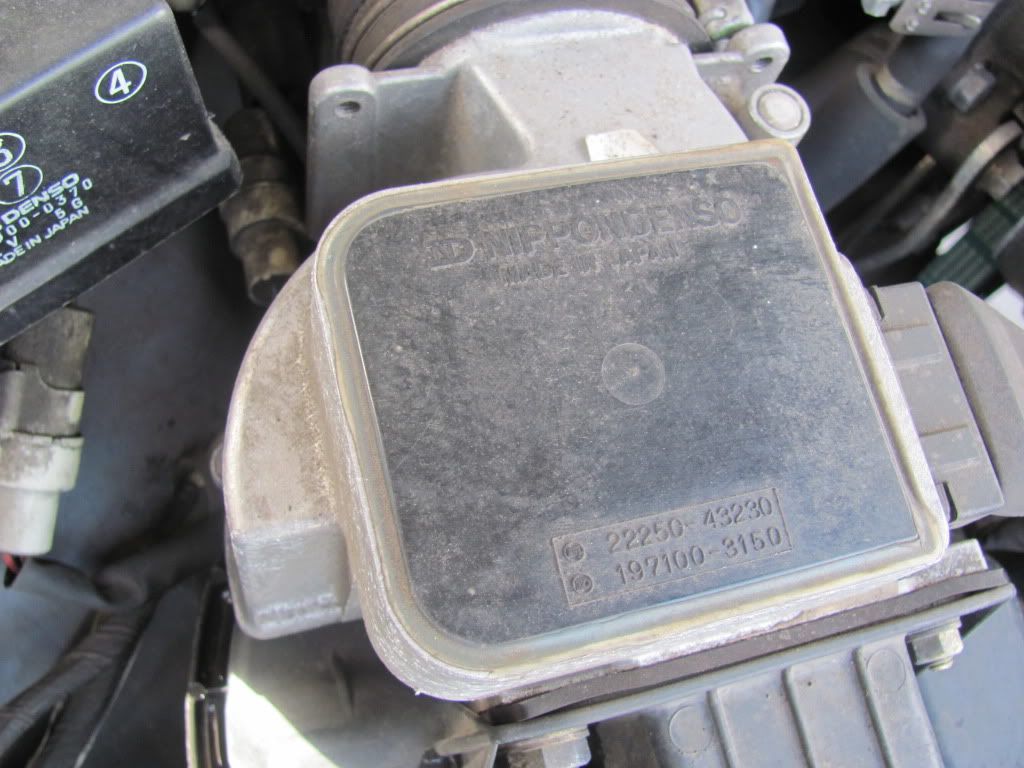

AFM anyone?
« Last Edit: Mar 29, 2011, 11:56:26 pm by a2ndopinion »
ASE certified: Master Auto, Truck, Machinist & Collision Repair/Refinish Tech/Damage Estimator, Undercar & Parts Specialist, Service Advisor; Oregon Certified Vehicle Appraiser
DD - '81 Corona wagon - Weber, Cannon, MSD, Thorley, Magnaflow cat, 2.25" mandrel bent, Dynomax Bullet, Borla Pro XS, RA6x front suspension, Cressi Big Brakes, Mk II Addco, T3 RCAs & camber plates, coilovers, SW20/Camaro AGXs front/rear, all urethane bushings, Hilux overlloads...

Offline a2ndopinion

  • Grand Master
  • *******
  • Posts: 22,331
  • PDX, OR Master Debater and Cunning Linguist
    • View Profile
    • http://a2ndopinionvehicleinspections.com
Re: Cressida Big Brake Upgrade
« Reply #1 on: Mar 29, 2011, 08:10:23 pm »

Okay, now to work. I started with the left side since the wheel was already removed, but will be switching side-to-side to include all of the steps.

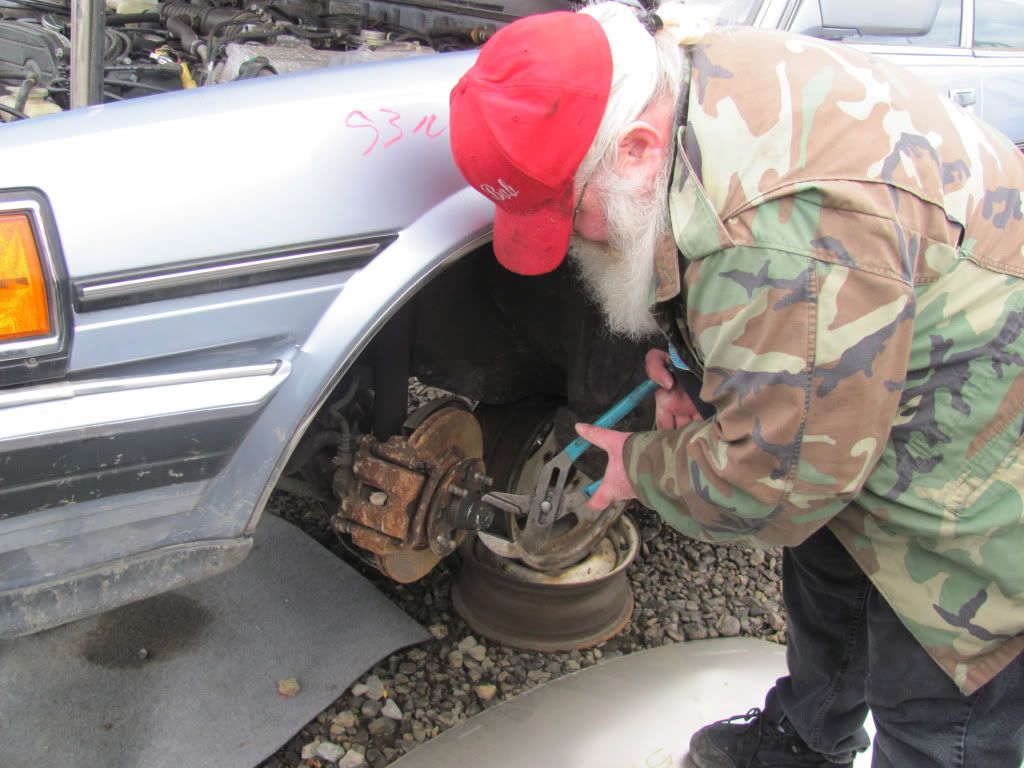

Pull the hub cap off. This may be more difficult than it looks here, like needing a screw(chisel) to break it loose.

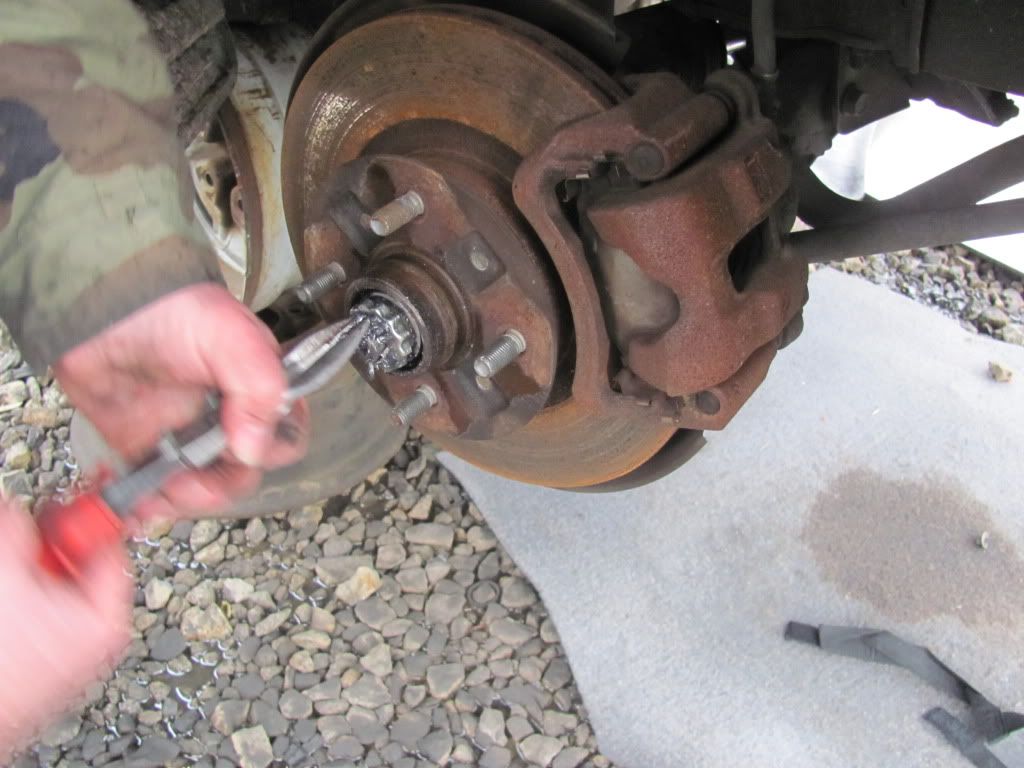

Pull the cotter pin out – if you’re a cheapskate and you’re careful, you can re-use it.

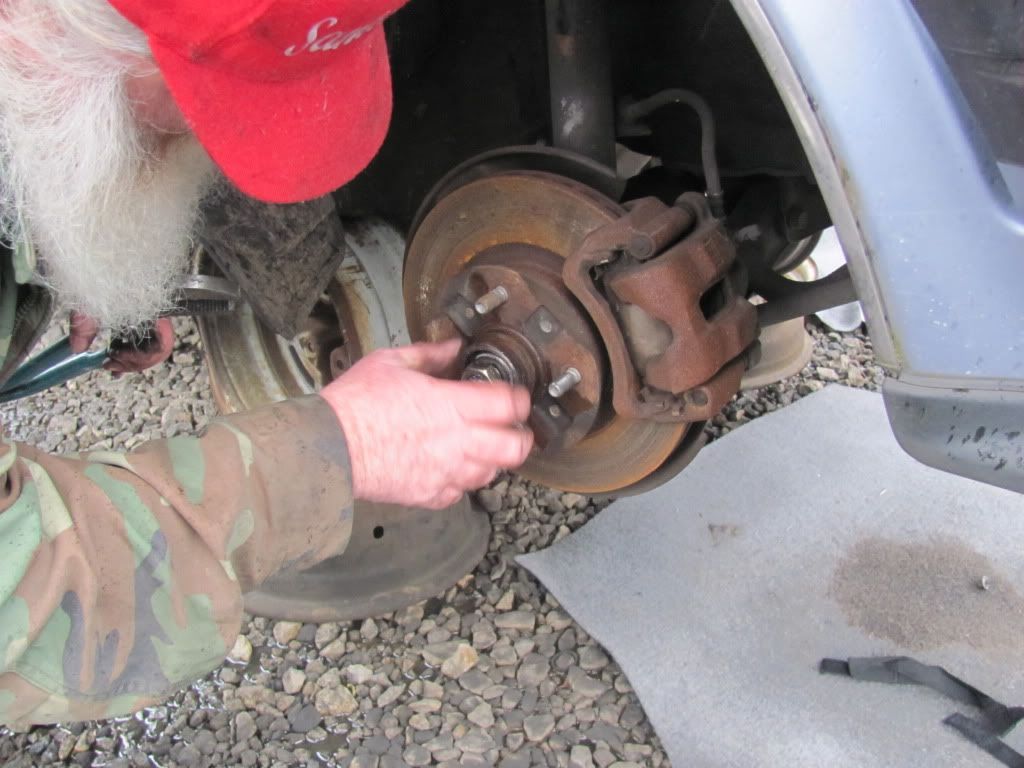

Pull the castle lock off and remove the axle (spindle) nut – then put the cap back on to keep the bearing in place when you take the whole thing.

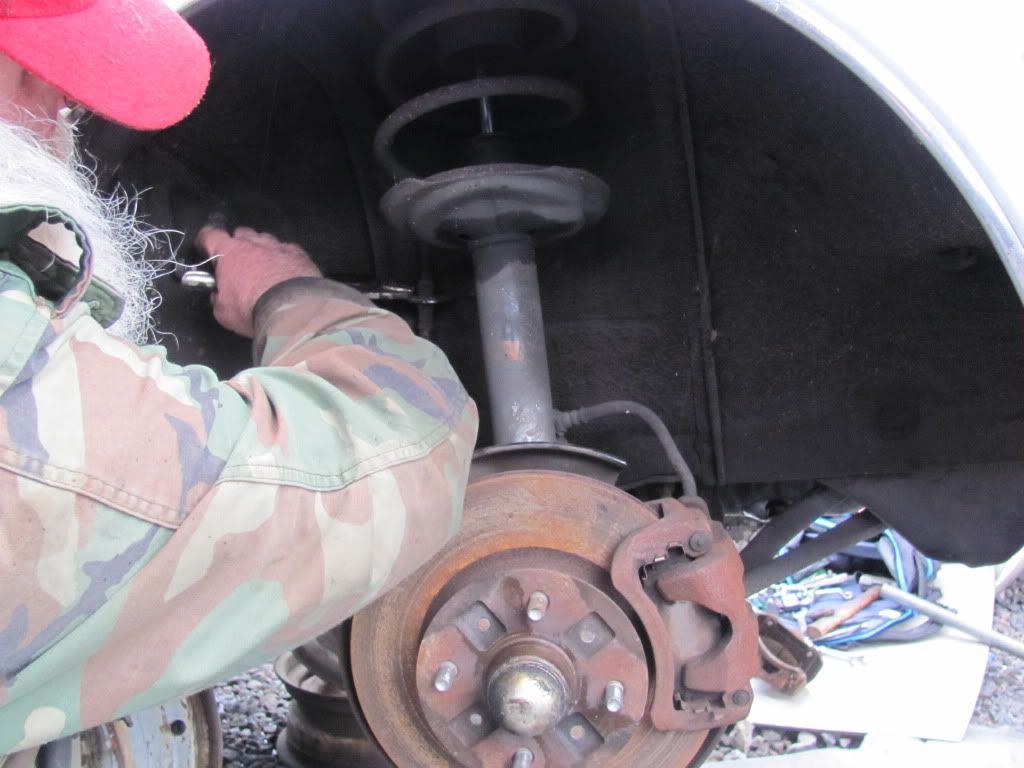

With pliers of some sort, remove the brake line clips from the strut and chassis at the hard line, then cut the hard line, open up the bracket at the strut and pull the lines loose.

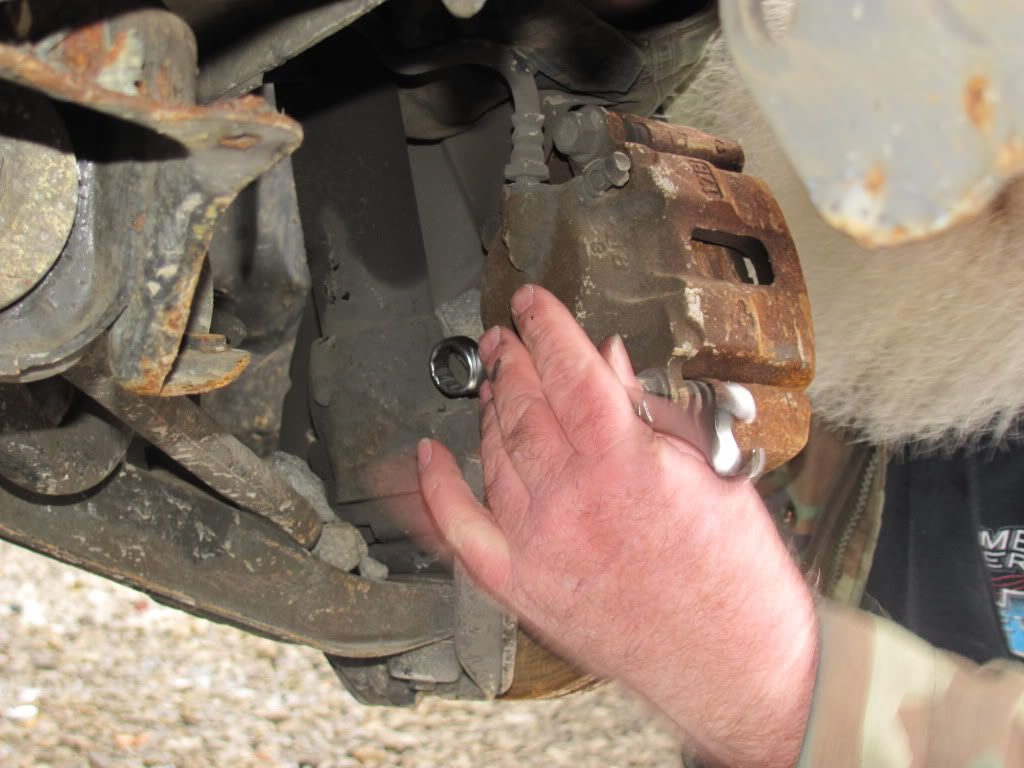

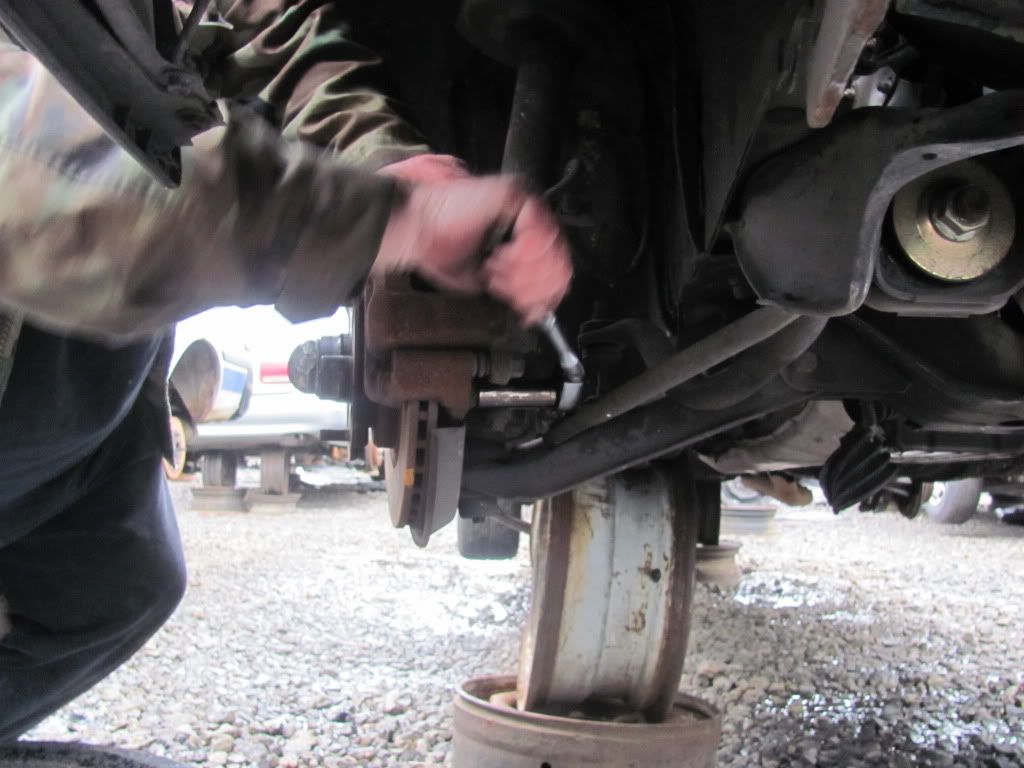

Removing the caliper bracket - pull the two 17mm headed bolts…


they might be tight and need a push


but should come out quite easily

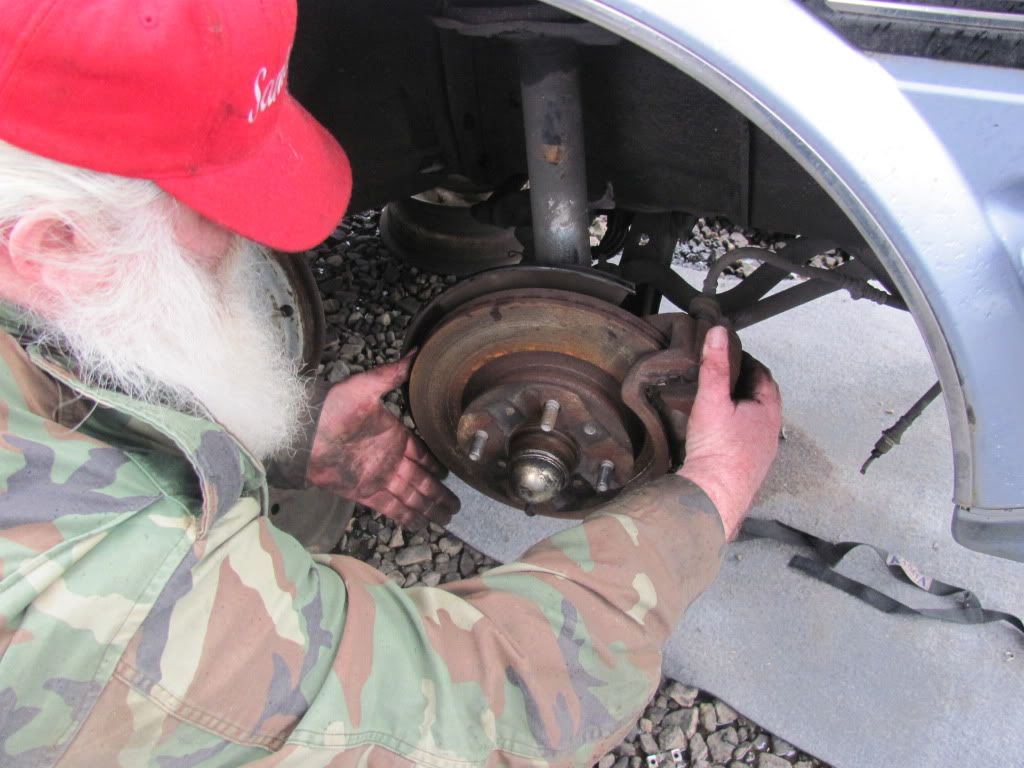

then you can simply pull the whole assembly off of the spindle


Zoomy and I were both quite surprised to find purple (silicone) grease in the wheel bearings! Somebody had done good work.

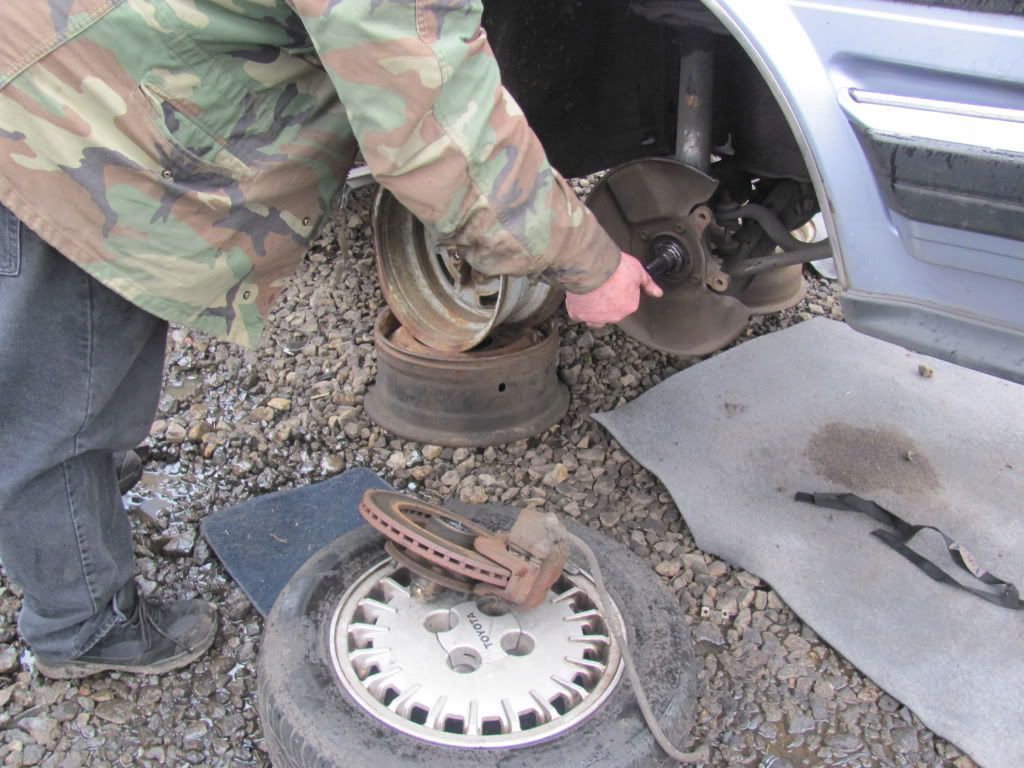

I then re-installed the nut and castle lock.

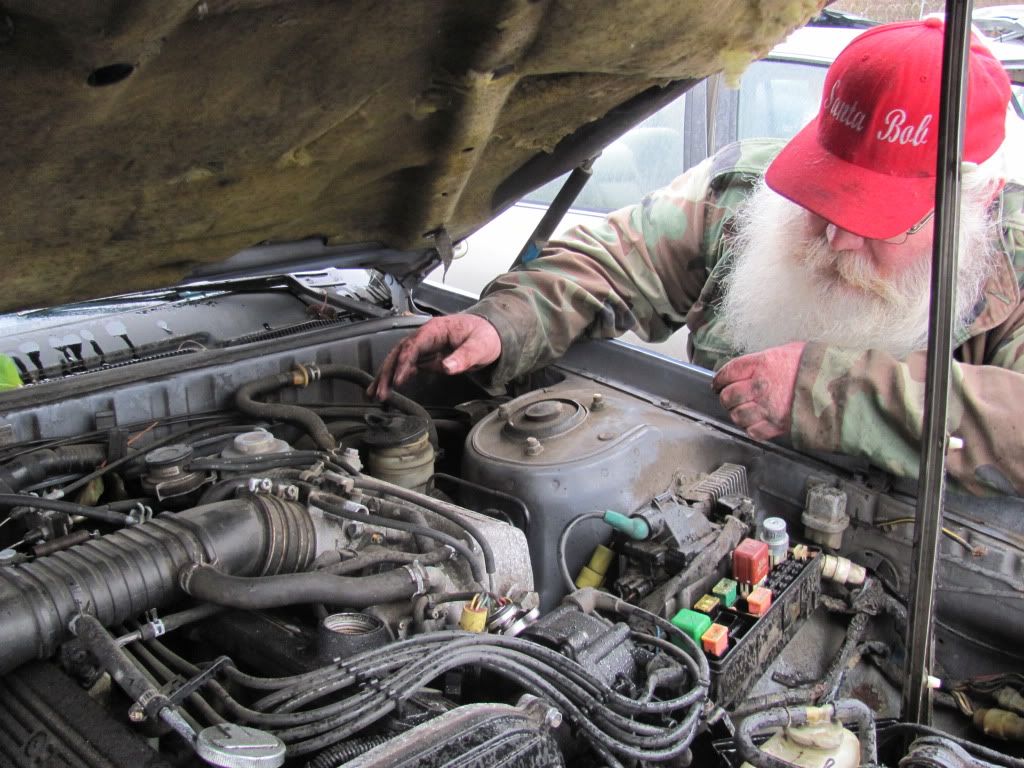

From there, I thought I’d take the M/C (mine was leaking) and the booster (it is a Cressida),


but ran into multiple problems. In a nutshell, it was a major PITA to get the nuts off of the booster under the dash –

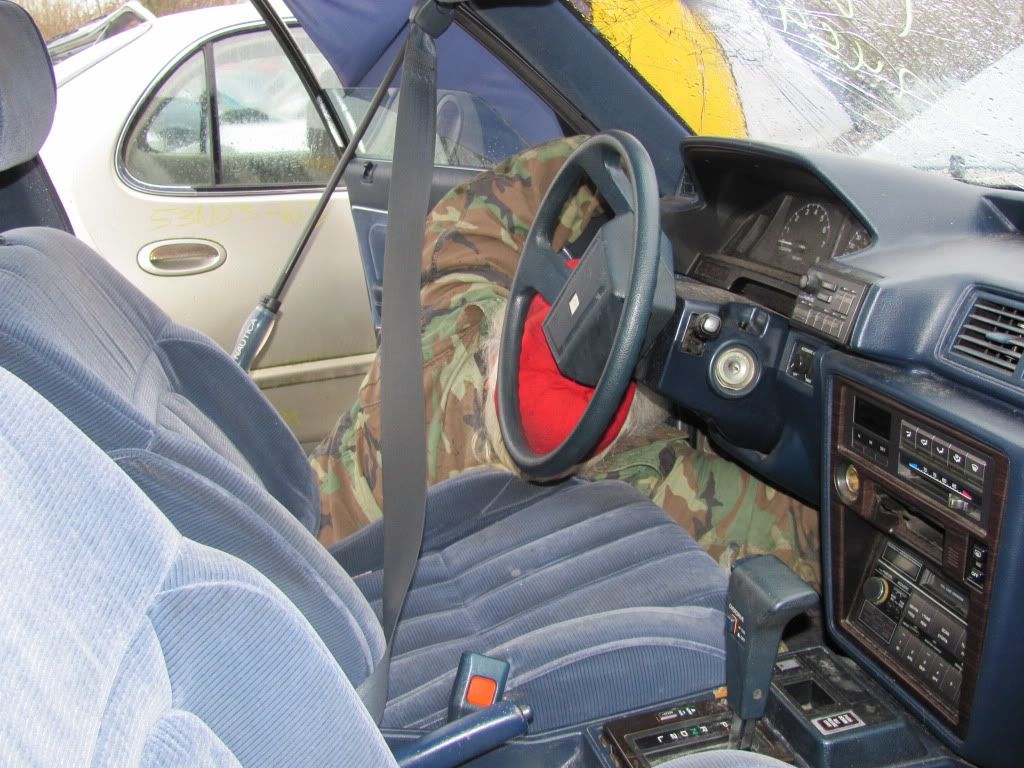

The (power) seat  was all of the way forward

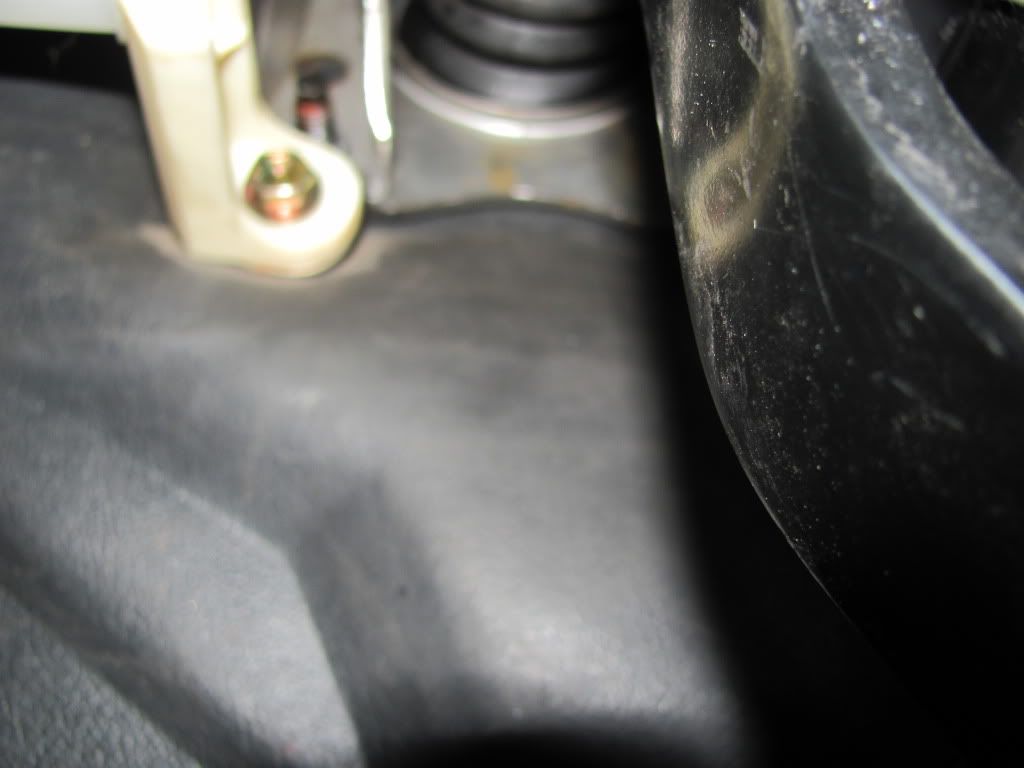

There is the closest stud – just above that bolt

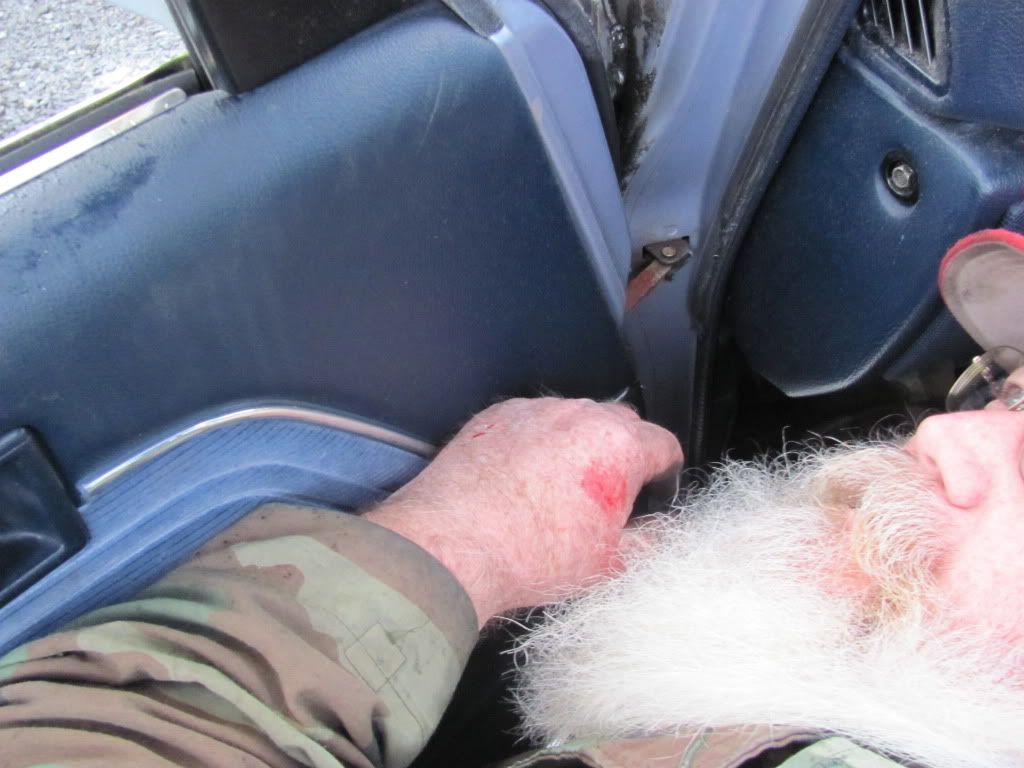

It’s a tight fit, and there are sharp corners up there

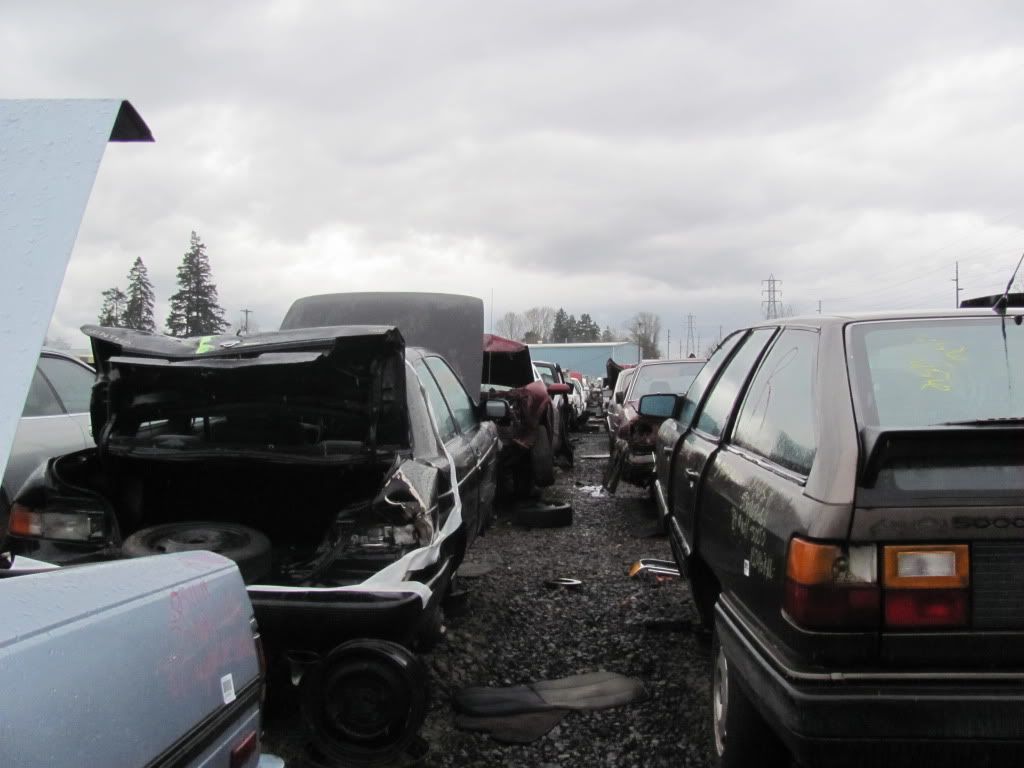

Tut tut – looks like rain!

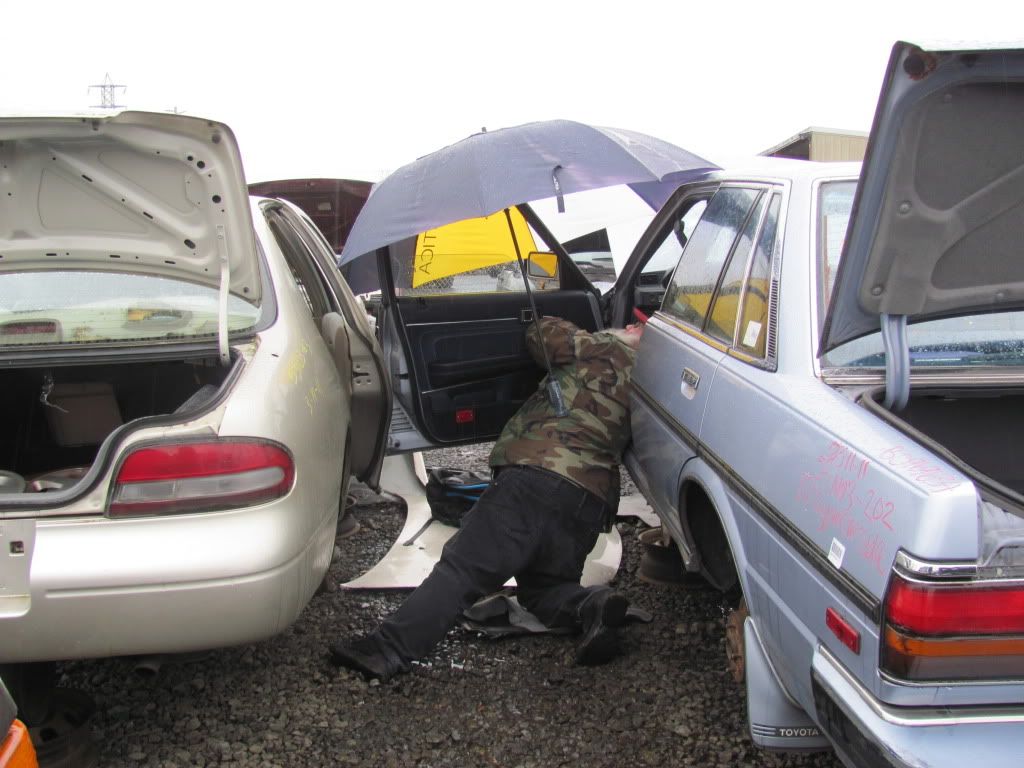

Good thing Zoomy brought the umbrella!


It turns out that the booster can’t slip out w/o jacking up the engine a bit because it hits the intake manifold, and of course, once I got the M/C loose, it was leaking too.
I did take the proportioning valve though, as the Corona will get a Mk I Supra disc brake diff shortly.

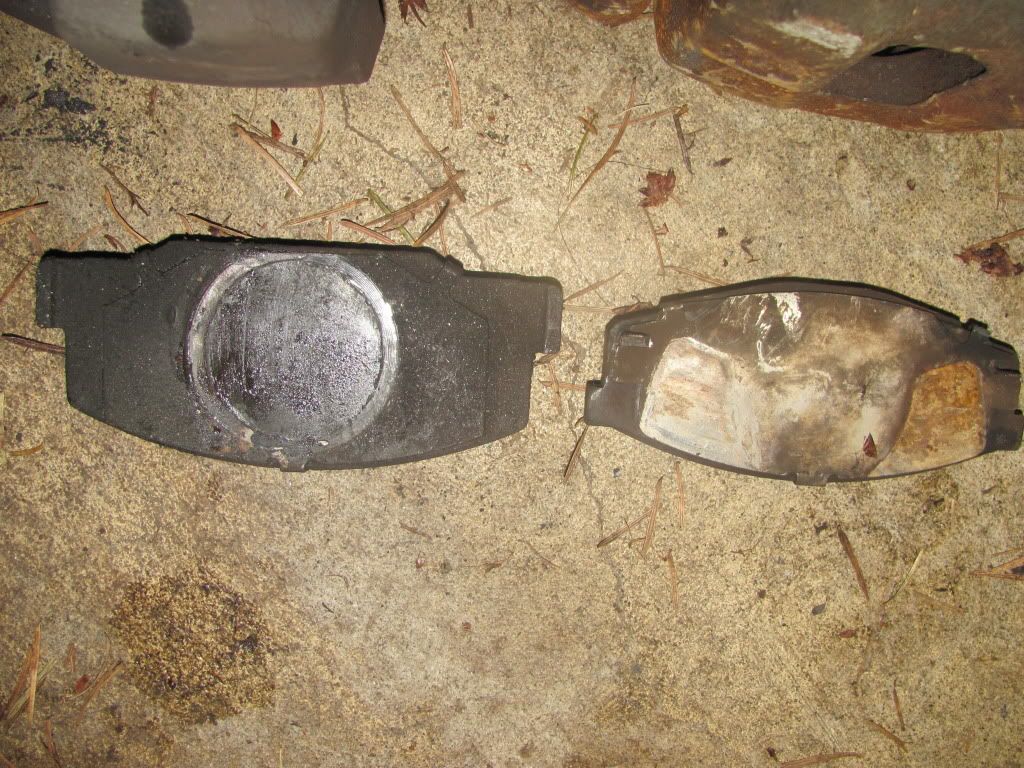

Cressida brake pad on the left, 3rd gen/MK II pad on the right


Cressida brake pad on the left, 3rd gen/MK II pad on the right

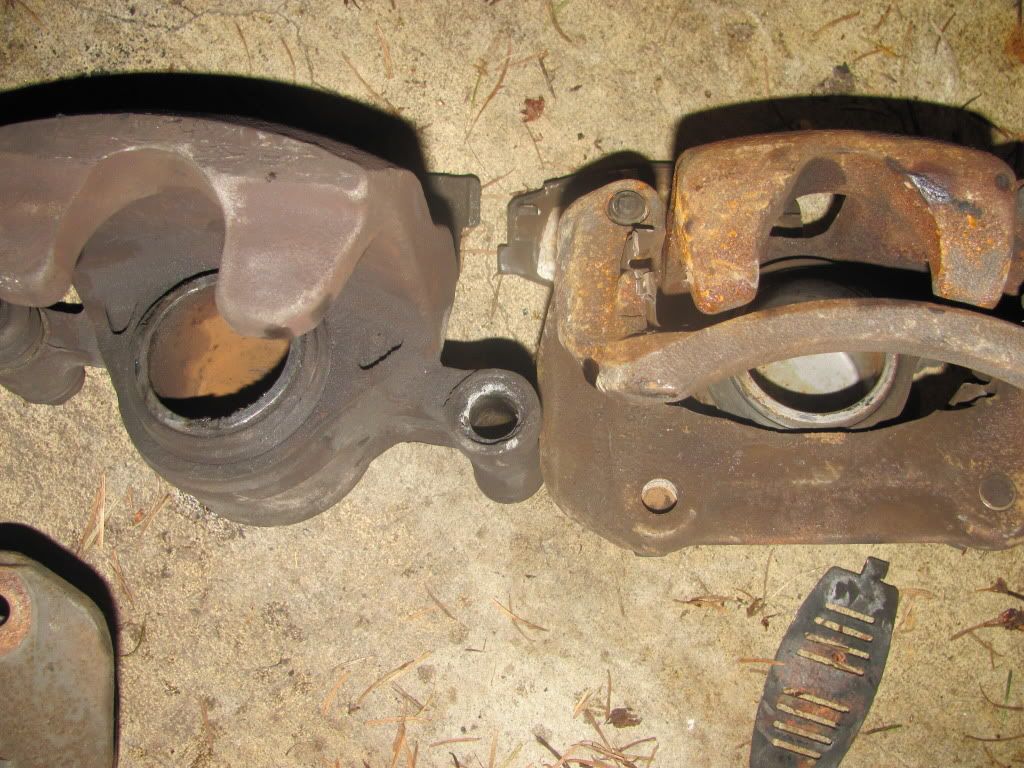

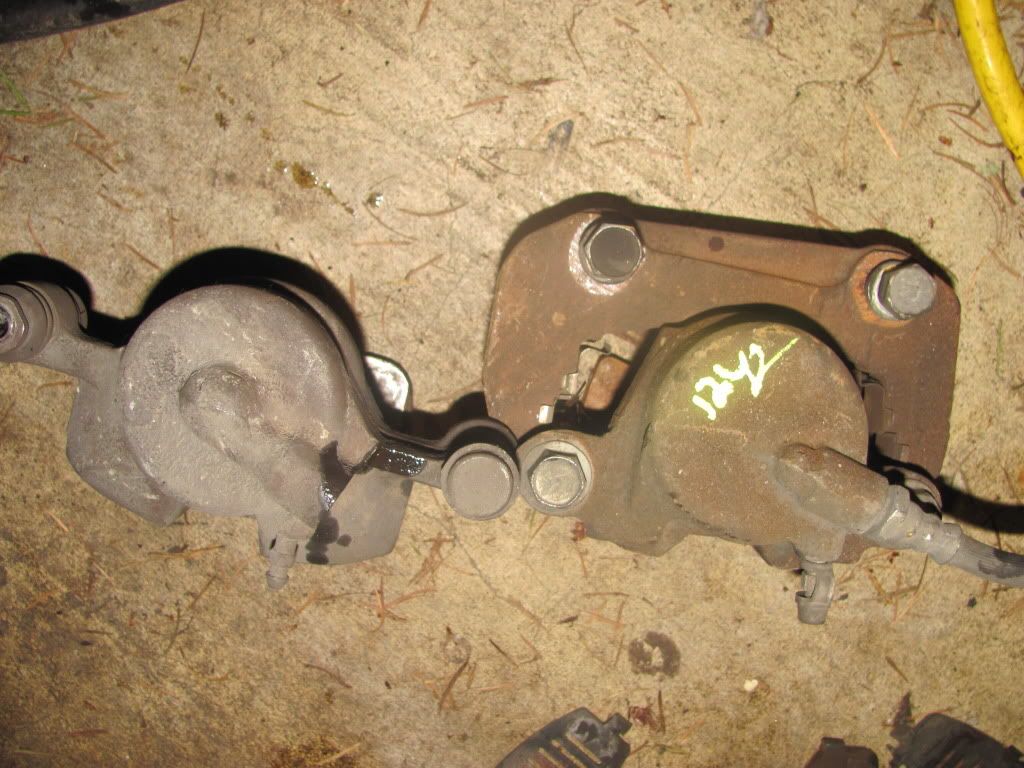

Cressida caliper on the left, 3rd gen/MK II caliper on the right


Cressida caliper on the left, 3rd gen/MK II caliper on the right


Cressida caliper on the left, 3rd gen/MK II caliper on the right

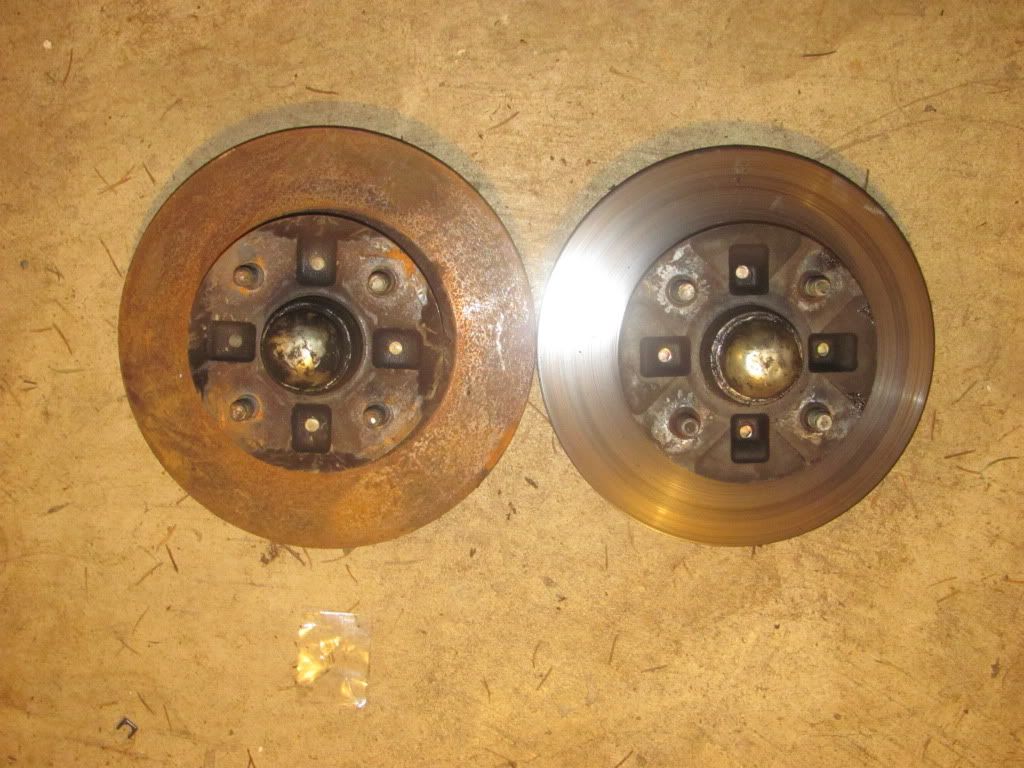

Cressida rotor on the left, 3rd gen/MK II rotor on the right


Cressida rotor on the left, 3rd gen/MK II rotor on the right

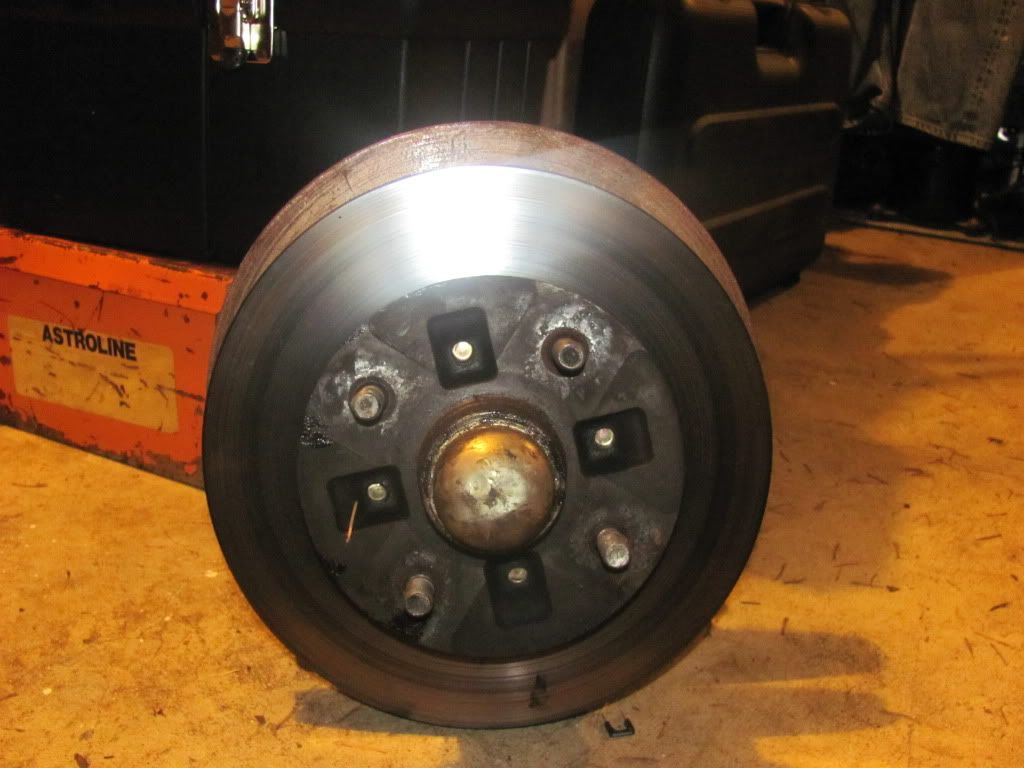

Cressida rotor in the back, 3rd gen/MK II rotor in the front


Measuring Cressida rotor

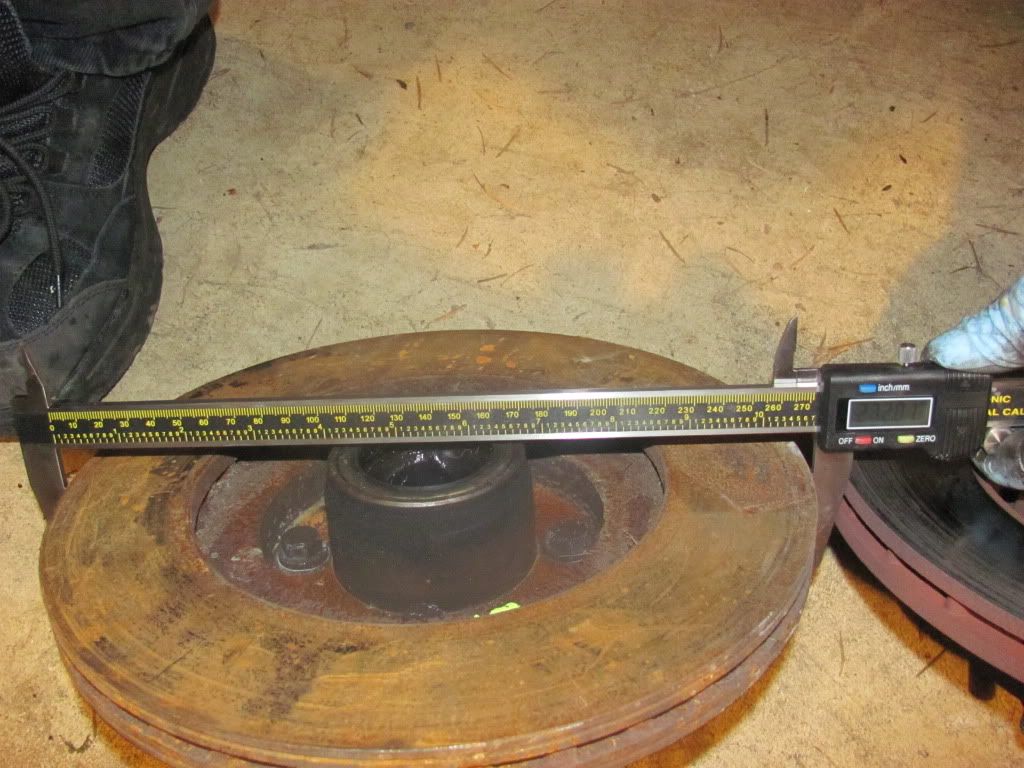

Cressida rotor diameter 272mm…

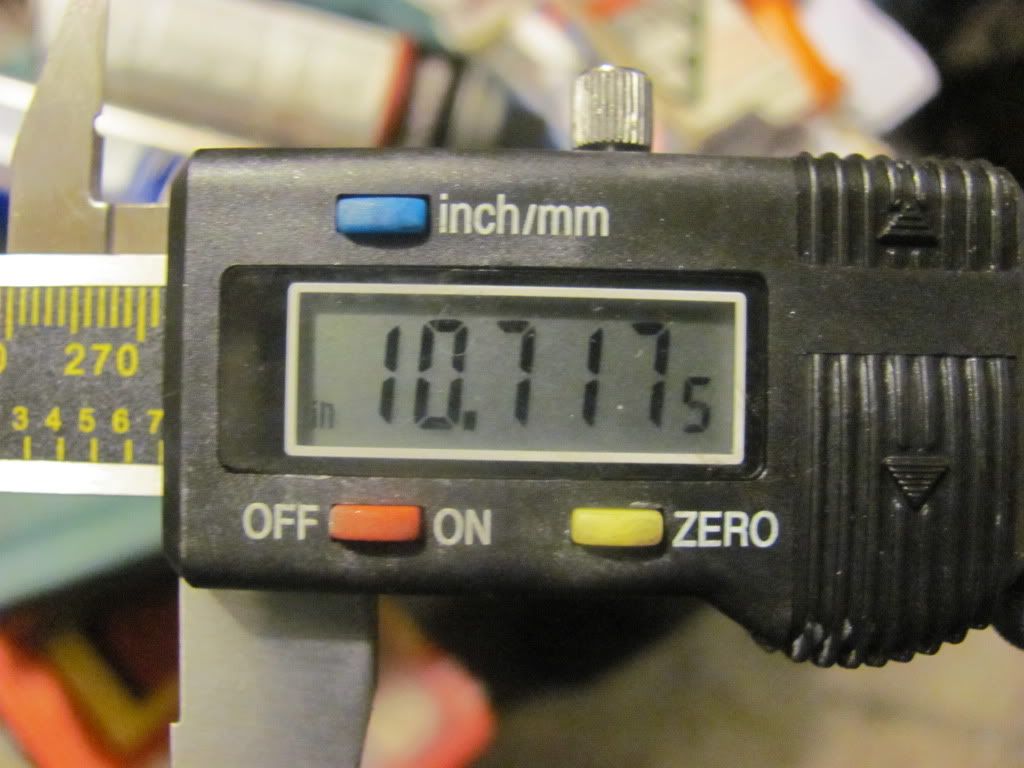

…which is 10.71 inches

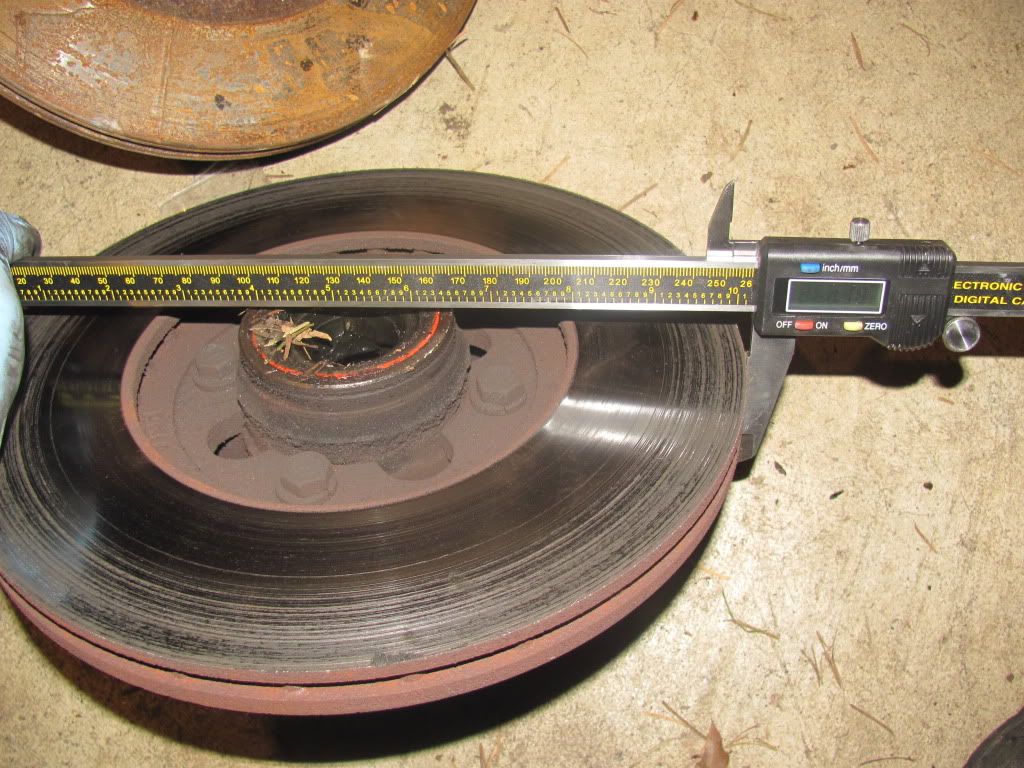

Measuring 3rd gen/MK II rotor

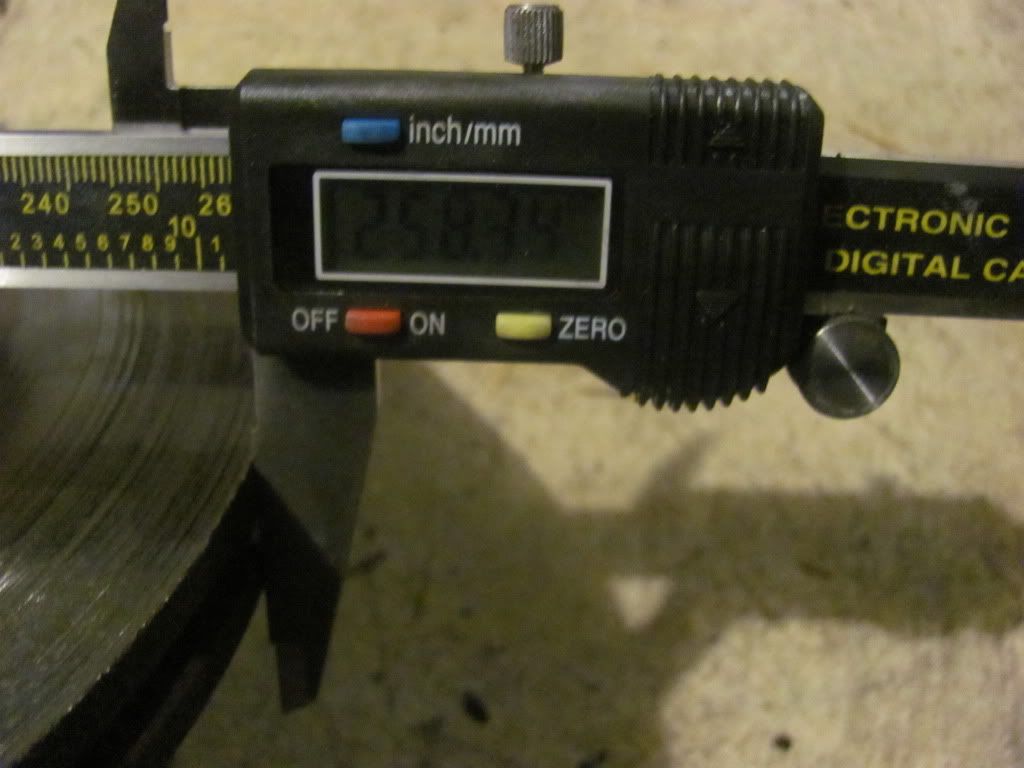

3rd gen/MK II rotor diameter 258mm…

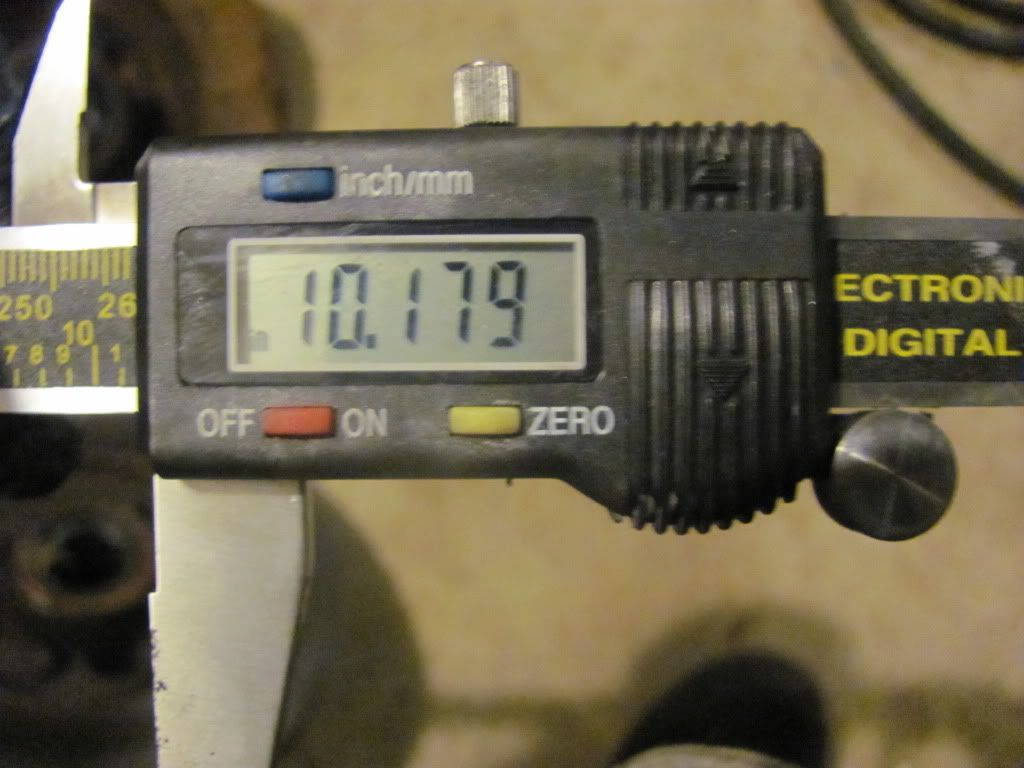

…which is 10.18 inches


Cressida minimum rotor thickness 21mm

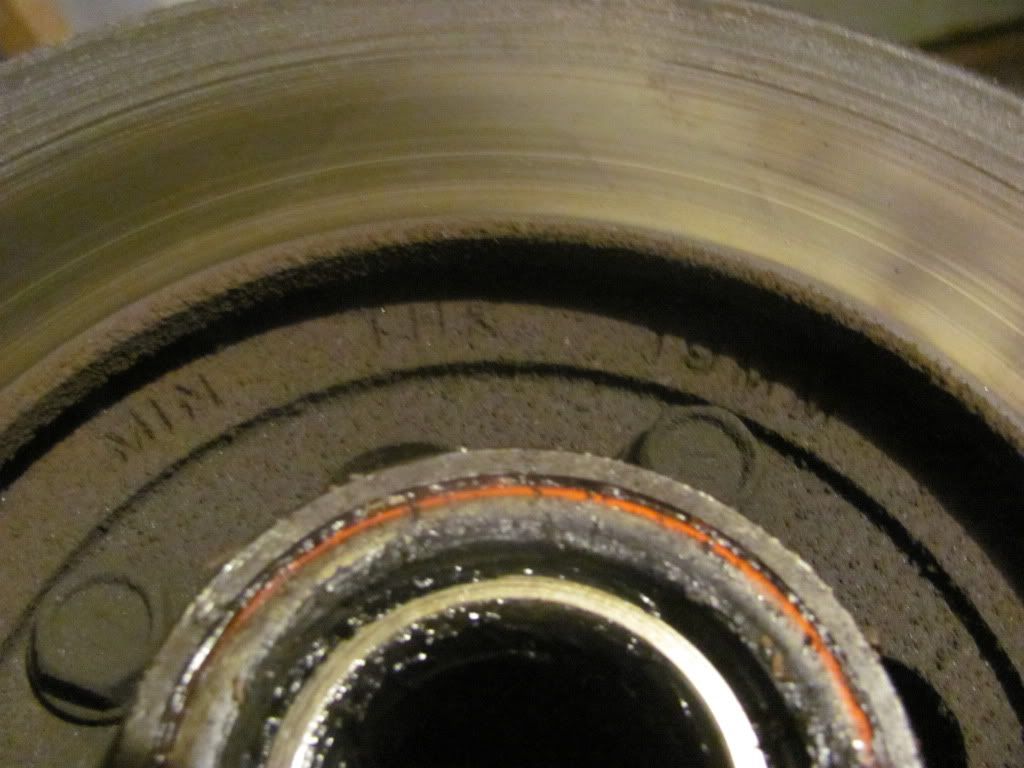

3rd gen/MK II minimum rotor thickness 19mm



For those curious about cost - after a 15% “Spring Break” discount, I was charged $13.17 per caliper (no charge for the four rubber lines or pads :) ), and $9.77 for each "brake rotor w/o hub" ( :huh: :) ). The grand total was $45.88, not including the $3.69 "Environmental Fee", $2.99 x 4 core charges, or the $2 admission fee (x2).
I did not take the backing plates off of the Cressida (for an additional $6.99 each), I just bent mine back a bit.

It is said that material must be ground off of the caliper to clear 14” (GT-S/Supra) wheels. I did not install new brake pads yet, and the calipers cleared my Enkies. I do not know if they will clear with new pads or not, so will update if I do.

I should also go over installation, and include doing a proper brake job, but basically it is the reverse of disassembly - or (again) go to the write up "Front Brake Job" (which isn't quite perfect in my eyes). Make sure the calipers slide smoothly on the mounting brackets…


Again, check caliper to wheel clearance before assuming it is good and messing up a wheel and/or caliper!

I have not taken this out for an abusive drive yet to verify any improvement, but then again, I never smoked the old brakes. It does definitely give me more confidence though, knowing they are even better than my last upgrade!
« Last Edit: Mar 31, 2011, 07:34:47 am by a2ndopinion »
ASE certified: Master Auto, Truck, Machinist & Collision Repair/Refinish Tech/Damage Estimator, Undercar & Parts Specialist, Service Advisor; Oregon Certified Vehicle Appraiser
DD - '81 Corona wagon - Weber, Cannon, MSD, Thorley, Magnaflow cat, 2.25" mandrel bent, Dynomax Bullet, Borla Pro XS, RA6x front suspension, Cressi Big Brakes, Mk II Addco, T3 RCAs & camber plates, coilovers, SW20/Camaro AGXs front/rear, all urethane bushings, Hilux overlloads...

Offline Vic_Ferrari2002

  • Forum Master
  • *****
  • Posts: 1,963
  • Damn Shoelees Amish!!
    • View Profile
Re: Cressida Big Brake Upgrade
« Reply #2 on: Mar 29, 2011, 08:22:00 pm »
excellent job Bob!!! Please let us know how much better they are on the sled... so the cressy spindles are the same as the 3rd gen spindles? why did you not grab the rear end while you were at it? I know you have enough of those already but it would never hurt to take it if it was a F303, I'm sure someone would take it off your hands!
« Last Edit: Mar 29, 2011, 08:25:36 pm by Vic_Ferrari2002 »
1985 Celica GT-S Hatchback - Sold and Missed
Never argue with an idiot! They'll just bring you down to their level and beat you with experience!
Welcome To Pa! Where we work 2 jobs so you dont have to!
despite my hatred for the helmet, they won't let me go on field trips without wearing it anymore....after last time, it's easy to understand why...
BTW Everytime I mash the gas in second, I just UZ'd in my pants!!!

Offline 85GTS

  • Bronze Member
  • Grand Master
  • *
  • Posts: 13,735
  • Wannabe Toyota collector- Oregon City, OR
    • View Profile
Re: Cressida Big Brake Upgrade
« Reply #3 on: Mar 29, 2011, 08:37:21 pm »
excellent job Bob!!! Please let us know how much better they are on the sled... so the cressy spindles are the same as the 3rd gen spindles? why did you not grab the rear end while you were at it? I know you have enough of those already but it would never hurt to take it if it was a F303, I'm sure someone would take it off your hands!
Probably wasnt... IIRC only the manual trans cressidas got the F303....
85 Celica GT-S LB "Blue"

78 Celica ST coupe "Sleepra"

00 Lexus GS 400

91 Lexus ES 250

88 Celica All-Trac

04 Sequoia (wifes)

The Second Amendment will always be under attack because it is the only veto held by the people.

Offline a2ndopinion

  • Grand Master
  • *******
  • Posts: 22,331
  • PDX, OR Master Debater and Cunning Linguist
    • View Profile
    • http://a2ndopinionvehicleinspections.com
Re: Cressida Big Brake Upgrade
« Reply #4 on: Mar 29, 2011, 08:41:53 pm »

It's funny - after seeing the Cressi rotors sitting for a week before doing the swap, seeing the 3rd gen/Mk II rotors sitting now, they look soooo small!
ASE certified: Master Auto, Truck, Machinist & Collision Repair/Refinish Tech/Damage Estimator, Undercar & Parts Specialist, Service Advisor; Oregon Certified Vehicle Appraiser
DD - '81 Corona wagon - Weber, Cannon, MSD, Thorley, Magnaflow cat, 2.25" mandrel bent, Dynomax Bullet, Borla Pro XS, RA6x front suspension, Cressi Big Brakes, Mk II Addco, T3 RCAs & camber plates, coilovers, SW20/Camaro AGXs front/rear, all urethane bushings, Hilux overlloads...

Offline GTS22REC

  • Full Member
  • ***
  • Posts: 400
    • View Profile
Re: Cressida Big Brake Upgrade
« Reply #5 on: Mar 29, 2011, 09:15:19 pm »
Was the braking balance (front and rears) disturbed because of the larger fronts.

Awesome thread btw, very informative.  You got a great deal on the brakes,  I love junk yard upgrades.

Offline a2ndopinion

  • Grand Master
  • *******
  • Posts: 22,331
  • PDX, OR Master Debater and Cunning Linguist
    • View Profile
    • http://a2ndopinionvehicleinspections.com
Re: Cressida Big Brake Upgrade
« Reply #6 on: Mar 29, 2011, 09:24:14 pm »
My brake balance was so F'd up anyway - the drum brakes don't do diddly squat, so the fronts locked up way too easy, and then the leaking M/C didn't help, and the front is so far from stock...
I'll let you all know more after I get a chance to really go abuse it. Of course, then I'll throw the disc brake rear end and the Cressi proportioning valve in and be at square one again - time for an adjustable prop valve...
ASE certified: Master Auto, Truck, Machinist & Collision Repair/Refinish Tech/Damage Estimator, Undercar & Parts Specialist, Service Advisor; Oregon Certified Vehicle Appraiser
DD - '81 Corona wagon - Weber, Cannon, MSD, Thorley, Magnaflow cat, 2.25" mandrel bent, Dynomax Bullet, Borla Pro XS, RA6x front suspension, Cressi Big Brakes, Mk II Addco, T3 RCAs & camber plates, coilovers, SW20/Camaro AGXs front/rear, all urethane bushings, Hilux overlloads...

Offline Frankenstiened85

  • Full Member
  • ***
  • Posts: 381
    • View Profile
Re: Cressida Big Brake Upgrade
« Reply #7 on: Mar 31, 2011, 04:58:05 am »
Great write-up. The pictures and directions right under it is really informative. I know this is one thread that many people will go back and read when they figure out how easy this upgrade can be done.

Offline jrally

  • Senior Member
  • ****
  • Posts: 932
    • View Profile
Re: Cressida Big Brake Upgrade
« Reply #8 on: Mar 31, 2011, 05:49:56 am »
The other thing I liked about this swap when I did it, weight savings.  Maybe I imagined it, but the Cressida set-up seemed about 2-3lbs lighter per side.

-Jon
'84 Celica RS
(building a dream I had one night!!)

Offline turbodubb

  • Full Member
  • ***
  • Posts: 306
    • View Profile
Re: Cressida Big Brake Upgrade
« Reply #9 on: Mar 31, 2011, 06:18:35 pm »
can i still use my 3rd gen hubs with the cressida rotors or do i need the cressida hubs?
83 celica gt liftback 5 speed
-s3 shifter w/billym bushing
-mod t3 AE86 coilovers
-t3 tension rods, 4 link/ph bar
-carbonetic 1.5way lsd
-addco sways f/r
-diy cone filter
-mod s13 front strut bar
-diy rear tower brace
-2 1/4 exhaust
-cel/sup 14x7 205/60
-corbeau gts seat
-magnaflow cat w/LR3 muff
-cf driveshaft
-coming soon (i hope)
-thorely header
-16x8 +10 rota rbr
-225/50 something less than 200 treadwear
66 bug 2054cc turbo 5 speed
69 chevelle wagon 350 350
12 rmz250
10 cbr 1000rr
09 r1(rip)
08 honda cbr 600rr(rip)
98 civic ex(rip)
04 yamaha r6(stolen)
05 r6(rip)
06 r1(rip)
96 gmc dually bagged escalade front(traded for chevelle

Offline Sigma Projects

  • Grand Master
  • *******
  • Posts: 12,853
    • View Profile
    • http://www.SigmaProjects.org
Re: Cressida Big Brake Upgrade
« Reply #10 on: Mar 31, 2011, 06:24:10 pm »
i think you need the cressida hubs because if you try to put the cressida rotors on the celica hubs it'll mess with the offset of the rotor.
1984 Celica GT Coupe    sold and missed it
1983 Celica GT Coupe    attacked... will miss it (RIP) JY
1982 Celica GT Liftback  sold and won't miss it, lol
1985 Celica GT Coupe    new love =P

2000 Honda Insight Daily Beater
1987 MR2 now mine because brother in law got shit from the father in law :heh:
My Instagram
My Website

Offline turbodubb

  • Full Member
  • ***
  • Posts: 306
    • View Profile
Re: Cressida Big Brake Upgrade
« Reply #11 on: Mar 31, 2011, 06:28:26 pm »
good point!
83 celica gt liftback 5 speed
-s3 shifter w/billym bushing
-mod t3 AE86 coilovers
-t3 tension rods, 4 link/ph bar
-carbonetic 1.5way lsd
-addco sways f/r
-diy cone filter
-mod s13 front strut bar
-diy rear tower brace
-2 1/4 exhaust
-cel/sup 14x7 205/60
-corbeau gts seat
-magnaflow cat w/LR3 muff
-cf driveshaft
-coming soon (i hope)
-thorely header
-16x8 +10 rota rbr
-225/50 something less than 200 treadwear
66 bug 2054cc turbo 5 speed
69 chevelle wagon 350 350
12 rmz250
10 cbr 1000rr
09 r1(rip)
08 honda cbr 600rr(rip)
98 civic ex(rip)
04 yamaha r6(stolen)
05 r6(rip)
06 r1(rip)
96 gmc dually bagged escalade front(traded for chevelle

Offline a2ndopinion

  • Grand Master
  • *******
  • Posts: 22,331
  • PDX, OR Master Debater and Cunning Linguist
    • View Profile
    • http://a2ndopinionvehicleinspections.com
Re: Cressida Big Brake Upgrade
« Reply #12 on: Mar 31, 2011, 06:47:10 pm »

Yeah, I was looking at that and wondering, but didn't want to take the time to pull them apart to find out. It is just sooooo easy to pull the whole thing from the donor Cressi and put them on the Celi complete, I so no reason to even wonder.
ASE certified: Master Auto, Truck, Machinist & Collision Repair/Refinish Tech/Damage Estimator, Undercar & Parts Specialist, Service Advisor; Oregon Certified Vehicle Appraiser
DD - '81 Corona wagon - Weber, Cannon, MSD, Thorley, Magnaflow cat, 2.25" mandrel bent, Dynomax Bullet, Borla Pro XS, RA6x front suspension, Cressi Big Brakes, Mk II Addco, T3 RCAs & camber plates, coilovers, SW20/Camaro AGXs front/rear, all urethane bushings, Hilux overlloads...

Offline ozzie

  • Senior Master
  • ******
  • Posts: 9,823
    • View Profile
Re: Cressida Big Brake Upgrade
« Reply #13 on: Mar 31, 2011, 09:34:58 pm »
Hmm, but if the 3rd gen hubs would work, it would mean those of us without a JY with 80s cars in it could buy the whole setup (rotors, calipers, and brackets) new from rockauto for about $150. Guess I gotta check the parts catalog tonight to find out if the hubs are actually the same.
'84 Celica GT - 261k mi

Offline Sigma Projects

  • Grand Master
  • *******
  • Posts: 12,853
    • View Profile
    • http://www.SigmaProjects.org
Re: Cressida Big Brake Upgrade
« Reply #14 on: Mar 31, 2011, 09:42:40 pm »
even if you look at bob's picture you can see that the rotor's mounting surface is different. And the back spacing on the hub is different. I'm pretty sure you'd have caliper clearance issues.
